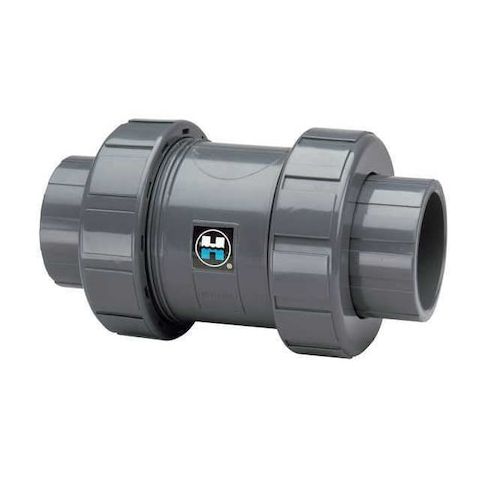

Check Valve, True Union, Ball, 2-1/2", CPVC/FPM, Threaded MPN:TC2250T
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for managing water flow in a variety of applications. Its true union design allows for easy installation and maintenance, while the CPVC/FPM construction ensures durability and resistance to corrosion. With a maximum flow rate of 100 gpm, this check valve is suitable for use in residential and commercial plumbing systems, pool equipment, and irrigation systems. Its ability to withstand temperatures up to 190°F and pressures up to 150 psi makes it a versatile choice for a range of water management needs.
Top product features:
- True Union design allows for easy installation and removal
- Flow design is single, allowing for efficient flow of water
- Viton seals provide reliable sealing and resistance to high temperatures
Top product applications:
- Water Circulation Systems
- Pool and Spa Equipment
- Industrial Process Control
HAYWARD FLOW CONTROL TC2250T is a 2-1/2 in. inline true union ball check valve for one-way flow control in general-purpose and pump systems. It features a CPVC body and check mechanism, FNPT x FNPT female threaded connections, and FPM/FKM sealing components. This valve is rated for water service and has a full-flow body design, a 3 psi cracking pressure, and a flow rating of 100 gpm.
Key Features:
- Valve type: Check valve with ball check mechanism and inline true union body design.
- Body and internal material: CPVC body with CPVC check mechanism.
- Connections: 2-1/2 in. FNPT x FNPT female threaded ends.
- Flow capacity: Cv 170 and 100 gpm flow rating.
- Pressure rating: 150 psi at 70 degrees F maximum water pressure
- 150 psi maximum operating pressure.
- Temperature range: 34 degrees F to 190 degrees F operating temperature.
- Mounting: Horizontal or vertical
- vertical flow-up position listed.
- Seal and seat materials: FPM/FKM (Viton).
- Certifications and standards: NSF 61
- ASTM D1784.
- Overall size: 10.68 in. overall length and 6 9/16 in. overall height.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.20
- Package Width: 7.20
- Package Height: 12.20
- Package Weight: 10.43
