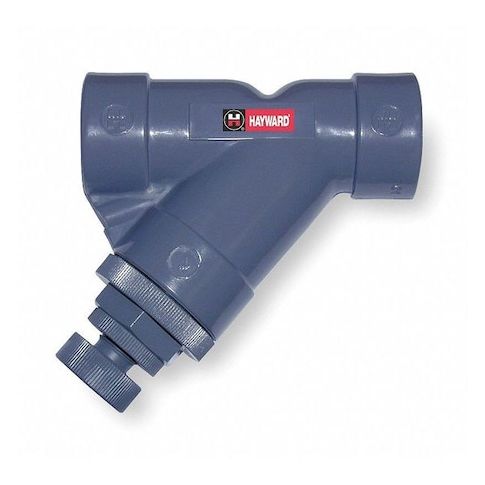

Y-Check Valve, Spring-Loaded, 2", PVC/EPDM, Threaded, Adjustable 2-15 psi MPN:SLC10200TE
Free Shipping
In Stock
The Hayward Y-Check Valve is a reliable and adjustable solution for various applications. This 2-inch PVC/EPDM valve features a spring-loaded design, allowing for easy adjustment of cracking pressure between 2-15 psi. Suitable for use in both horizontal and vertical orientations, it's ideal for plumbing, irrigation, and pool systems. The valve's EPDM seal ensures durability and resistance to corrosion, while its stainless steel spring maintains its strength and reliability. With a flow rate of 70 gpm, this valve is perfect for applications requiring high water flow, making it a valuable addition to any system.
Top product features:
- Spring-loaded mechanism allows for easy adjustment of cracking pressure
- Adjustable cracking pressure range of 2-15 psi
- Single flow design allows for inline installation
Top product applications:
- Pool and spa systems for controlling water flow and preventing backflow
- Industrial piping systems for regulating pressure and flow rates
- Water treatment plants for maintaining water quality and preventing contamination
The HAYWARD FLOW CONTROL SLC10200TE is a 2 in. spring-loaded Y-check valve for one-way flow control in general-purpose water service. It features a PVC body with EPDM seal material and a piston check mechanism, helping control reverse flow in threaded piping systems. The valve has FNPT x FNPT connections, supports horizontal or vertical mounting, and is rated for up to 150 psi at 70 degrees F.
Key Features:
- Spring-loaded inline check valve with Y-style body for one-way flow control.
- 2 in. FNPT x FNPT female threaded connections.
- PVC body, PVC check mechanism, PVC seat, EPDM seal, and stainless steel spring.
- 2.0 psi cracking pressure, adjustable from 2 to 15 psi.
- Flow rating of 70 gpm with a Cv of 65.
- Rated to 150 psi at 70 degrees F
- operating temperature range from 40 degrees F to 140 degrees F.
- Suitable for horizontal or vertical mounting.
- Meets ASTM D1784.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 6.20
- Package Height: 12.60
- Package Weight: 4.55
