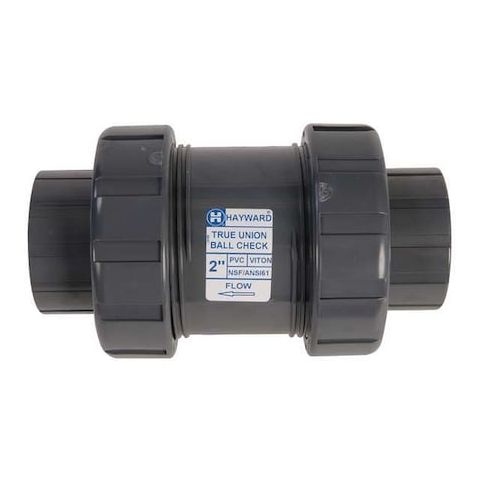

Check Valve, True Union, Ball, 2-1/2", PVC/FPM, Threaded MPN:TC1250T
Free Shipping
In Stock
The Hayward True Union Ball Check Valve is a reliable and efficient solution for a variety of applications, including pool and spa systems, water treatment plants, and industrial processes. Its single flow design and inline true union configuration provide easy installation and maintenance, while its PVC/FPM construction ensures durability and resistance to corrosion. With a maximum water pressure of 150 psi, this check valve can handle high-pressure applications with ease, making it an ideal choice for demanding systems. Its Viton seals and ball mechanism ensure a tight seal and long lifespan, providing years of trouble-free operation.
Top product features:
- True Union design allows for easy removal and replacement of the valve
- Flow design is single, allowing for one-way flow control
- Viton seals provide a reliable and chemical-resistant seal up to 140 degrees Fahrenheit
Top product applications:
- Pool and spa systems
- Water treatment plants
- Industrial piping systems
HAYWARD FLOW CONTROL TC1250T is a 2-1/2 in inline true union ball check valve with a PVC body and PVC check mechanism. Intended for one-way flow applications and reverse-flow reduction in water-handling systems. It has a 3 psi cracking pressure and FNPT female threaded connections on both ends.
Key Features:
- Valve type: Check valve with ball check mechanism
- Body design: Inline true union
- Body and mechanism material: PVC
- Seal and seat material: FPM/FKM/Viton
- Connection type: 2-1/2 in FNPT x FNPT, female x female, threaded
- Flow rating: 100 gpm
- Cv: 170
- Pressure rating: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 140 degrees F
- Mounting position: Horizontal or vertical
- vertical flow up
- Certifications/standards: NSF 61, ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.40
- Package Width: 7.20
- Package Height: 12.20
- Package Weight: 9.85
