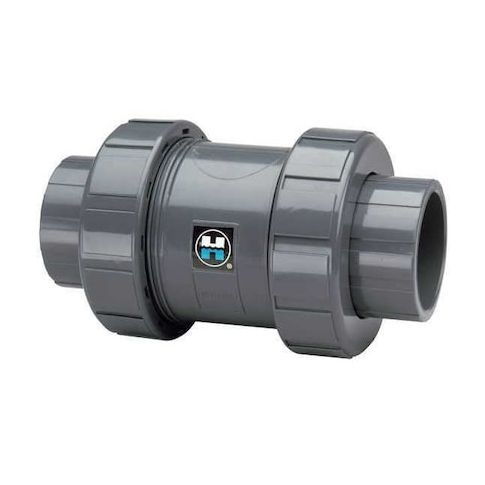

Check Valve, True Union, Ball, 4", CPVC/FPM, Threaded MPN:TC2400TE
Free Shipping
In Stock
The Hayward True Union Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and industrial processes. Its single flow design and inline true union body ensure smooth fluid flow and easy maintenance. Made from CPVC and FPM, this valve can withstand high temperatures and pressures, making it suitable for use in systems up to 150 psi. With a flow rate of 275 gpm, it can handle demanding applications, and its EPDM seat and seal materials provide long-lasting durability and resistance to corrosion.
Top product features:
- True Union design allows for easy installation and removal of the check valve
- Flow design is single, allowing for efficient flow in one direction
- EPDM seal material provides reliable sealing up to 190°F
Top product applications:
- Drainback pool heating systems
- Well water systems
- Hydrotherapy systems
HAYWARD FLOW CONTROL TC2400TE is a 4 in. true union ball check valve for process piping. It features an inline CPVC body, a CPVC ball check mechanism, and FNPT x FNPT threaded connections. The valve is specified for water service, is configured for one-direction flow, and uses a ball check mechanism for reverse-flow control. Specifications include a 275 gpm flow rating and 3 psi cracking pressure for process piping applications where a check valve is specified.
Key Features:
- 4 in. nominal valve size with 4 in. female NPT connections on both ends
- True union inline body design for threaded installation in process piping
- CPVC body and CPVC check mechanism
- Ball-style check mechanism
- Seal material: FPM
- Seat material: EPDM
- Flow rating: 275 gpm
- Cv: 400
- Cracking pressure: 3 psi
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 190 degrees F
- Mounting positions: horizontal and vertical, including vertical flow-up orientation
- NSF 61
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.40
- Package Width: 9.30
- Package Height: 13.40
- Package Weight: 18.90
