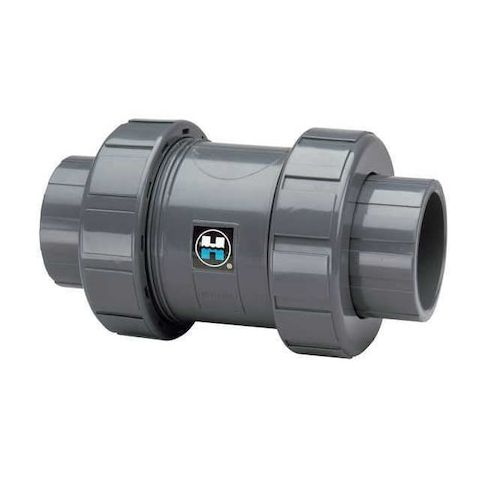

Check Valve, True Union, Ball, 4", CPVC/FPM, Flanged MPN:TC2400F
Free Shipping
In Stock
The Hayward True Union Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and industrial processes. Its true union design allows for easy installation and maintenance, while its ball mechanism ensures smooth and quiet operation. With a flow rate of 275 gpm and a maximum pressure rating of 150 psi, this check valve is suitable for high-pressure applications. Its CPVC/FPM construction and Viton seals provide excellent chemical resistance and durability, making it a great choice for demanding environments and extreme temperatures.
Top product features:
- True Union design allows for easy removal and replacement of the valve without disturbing the surrounding piping.
- The valve has a single flow design to minimize pressure drop and maximize flow capacity.
- The ball check valve mechanism provides a reliable and consistent shut-off of fluid flow.
Top product applications:
- Water treatment systems
- Swimming pools
- Industrial processes
HAYWARD FLOW CONTROL TC2400F is a 4 in inline true union check valve with a ball check mechanism for one-way flow control in process piping. It features a CPVC body and check mechanism with FPM/FKM sealing components and is rated for water service. The full-flow, single-flow design is intended for one-way flow control and closure under reverse-flow conditions.
Key Features:
- 4 in nominal valve size with flange x flange connections
- ANSI flange class: Class 150
- Body material: CPVC
- Check mechanism: Ball
- Check mechanism material: CPVC
- Mechanism and body design: Inline True Union
- Seal/seat material: FPM/FKM/Viton
- Cracking pressure: 3 psi
- Flow rating: 275 gpm
- Cv: 400
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 190 degrees F
- Mounting position: Vertical flow up
- confirm permitted mounting orientation with product documentation before installation
- NSF certification: NSF 61
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.70
- Package Width: 9.60
- Package Height: 19.70
- Package Weight: 26.10
