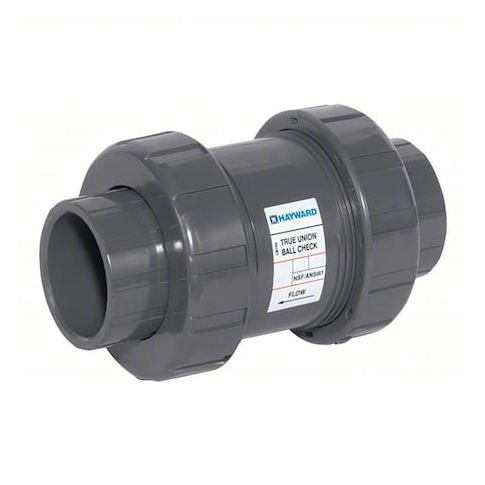

Ball Check Valve, TC Series, Inline, 1 1/2 in Socket x Socket, Polypropylene MPN:TC30150S
The Hayward Check Valve is a reliable and efficient component designed to regulate the flow of water in various applications. Its use is essential in preventing backflow and ensuring a consistent water supply. By installing the Hayward Check Valve, users can enjoy uninterrupted water flow, prevent damage to equipment, and reduce the risk of contamination. Suitable for use in residential and commercial settings, this valve is ideal for pools, water treatment systems, and irrigation systems, providing a safe and reliable solution for a wide range of water management needs.
Top product features:
- Directs fluid flow in one direction to prevent backflow and ensure proper system operation
- Has a compact design that allows for easy installation and reduced space requirements
- Operates with a reliable mechanism that minimizes the risk of valve failure
Top product applications:
- Pool Circulation System
- Swimming Pool Equipment
- Water Filtration System
HAYWARD FLOW CONTROL TC30150S is an inline ball check valve with a polypropylene body for one-way flow control in liquid handling and process lines. It uses a ball mechanism to allow flow in one direction and check reverse flow. The valve has 1 1/2 in socket connections on both sides and can be mounted in horizontal or vertical orientations. It is for use with compatible corrosive chemicals.
Key Features:
- - Valve type: Ball check valve with ball check mechanism for one-way flow control
- - Body material: Polypropylene
- - Valve body style: Inline
- - Nominal valve size: 1 1/2 in
- - Connection type: Socket x Socket
- - Connection size: 1 1/2 in x 1 1/2 in
- - Media compatibility: Compatible corrosive chemicals
- - Cracking pressure: 1.5 psi
- - Coefficient of volume (Cv): 45
- - Maximum operating pressure: 235 psi
- - Operating temperature range: 20 degrees F to 250 degrees F
- - Seal material: FKM
- - Seat material: EPDM
- - Mounting orientation: Horizontal or vertical
- - Valve ways: 2-way
- - Overall height: 7 1/16 in
- - Standards: ASTM D1784, ASTM D4101
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 15.00
- Package Height: 13.00
- Package Weight: 1.75
