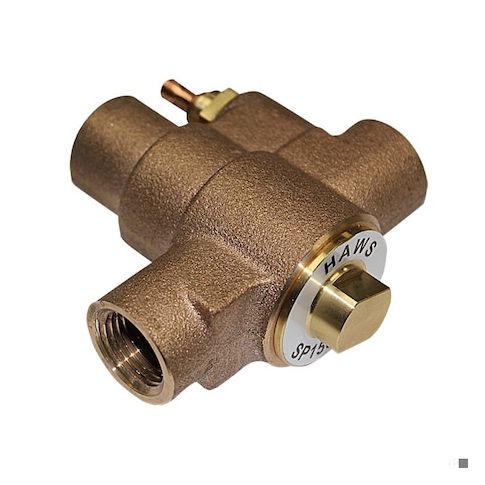

Valve, Brass, Yellow, For Use With, Shower, Eyewash MPN:SP158B
Protect your shower and eyewash stations from freezing temperatures with the Haws Freeze Protection Valve. This automatic thermal actuator bleed valve ensures water flow remains uninterrupted, even in extreme cold. The valve closes completely when water temperature rises above 42°F (5.6°C), and opens when temperature drops below 35°F (1.7°C). Made of durable brass, this valve is designed for use with shower and eyewash systems, providing reliable protection against freezing temperatures. Ideal for industrial, commercial, and institutional settings, this valve is a must-have for any facility where water safety is a top priority.
Top product features:
- Automatic Thermal Actuator Bleed Valve Closes Completely When the Water Climbs Back to 42 Degrees F (5.6 Degrees C)
- Automatic Thermal Actuator Bleed Valve Opens Water Temperature Below 35 Degrees F (1.7 Degrees C)
- Automatic Thermal Actuator Bleed Valve Closes Completely When the Water Climbs Back to 42 Degrees F (5.6 Degrees C)
Top product applications:
- Shower
- Eyewash
- Inlet Pipe Size 1/2 In.
HAWS SP158B freeze protection valve for use with eyewash and shower units. It automatically opens and closes based on specified ambient temperature conditions to control water flow, for use to mitigate freezing within the specified temperature control range. Designed to control water flow within the specified temperature control set points.
Key Features:
- - Accessory Type: Freeze Protection Valve
- - Material: Brass
- - Color: Yellow
- - Dimensions: 3 3/8 in height x 1 5/8 in width x 3 1/2 in depth
- - Inlet/Outlet Connections: 1/2 in NPT female pipe threads for both inlet and outlet
- - Temperature Controls: Opens at temperatures below 35°F (1.7°C) and closes at temperatures above 42°F (5.6°C).
- - Rated maximum inlet and outlet water temperature: 42°F.
- - Designed for use with HAWS eyewash and shower equipment models using 1/2 in NPT female inlet/outlet connections.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.90
- Package Width: 4.80
- Package Height: 2.50
- Package Weight: 1.70
