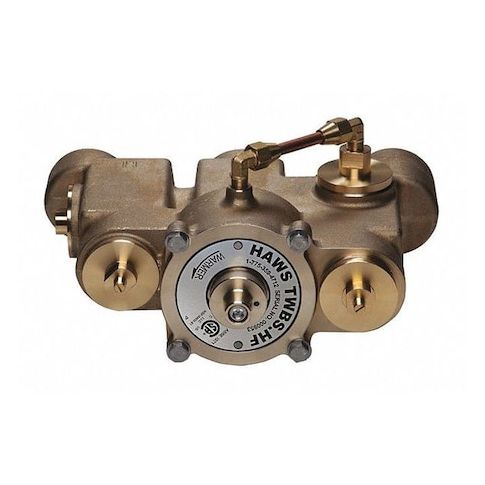

Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers MPN:TWBS.HF
Free Shipping
In Stock
The Emergency Mixing Valve from Haws is a crucial accessory for any eyewash or shower station, providing anti-scald protection and precise temperature control. This thermostatic mixing valve ensures a consistent flow of water between 1 and 78 gallons per minute, meeting the demands of various applications. Its compact design, measuring 12 7/8 inches in depth and 9 5/8 inches in height, makes it ideal for installation in tight spaces. Suitable for use with eyewashes and showers, this valve is a vital component for maintaining a safe and healthy environment in industrial, commercial, and institutional settings.
Top product features:
- Anti-Scald Protection
- Shuttle Design
- Flow Range of 1 to 78 gpm (295 L)
Top product applications:
- Eyewashes
- Showers
- Emergency Eyewash Stations
The HAWS - TWBS.HF is an emergency mixing valve that is intended for use as a thermostatic mixing valve for emergency eyewash and shower systems. It regulates the water temperature by mixing hot and cold water to deliver consistent output within a specified temperature range. The valve operates in response to hot and cold water flow and is compatible with Haws brand equipment. Thermostatic control maintains mixed water temperature between 60–90°F during operation.
Key Features:
- - Material: Brass construction.
- - Rated maximum flow rate: 78 gallons per minute (gpm).
- - Flow range: 1–78 gpm
- uses a shuttle design for mixing.
- - Maximum inlet pressure: 125 psi.
- - Maximum inlet temperature: 180 degrees Fahrenheit.
- - Inlet and outlet pipe connection: 2 inch Female NPT threads.
- - Dimensions: 13 in length x 8 1/4 in width x 9 5/8 in height x 12 7/8 in depth.
- - Color: Yellow for visual identification.
- - Valve feature includes cold water bypass functionality.
- - Is listed/certified to the following standards: ANSI Z358.1, ASSE 1071, California Health and Safety Code 116875 (AB 1953-2006), CSA B125.3, NSF/ANSI 372, and NSF/ANSI 61 (Section 8).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 9.60
- Package Height: 11.60
- Package Weight: 32.15
