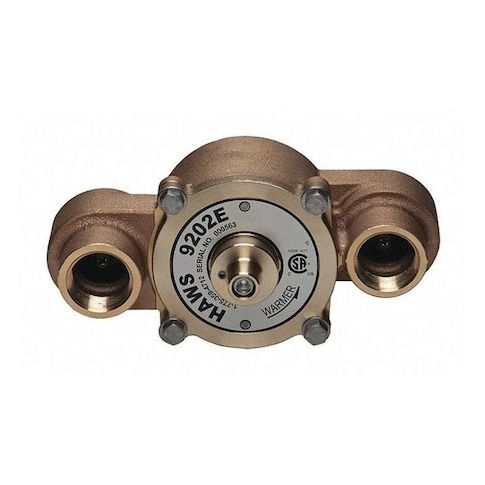

Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers MPN:9202E
Free Shipping
In Stock
The Haws Emergency Mixing Valve is a reliable and efficient solution for ensuring safe and effective emergency eyewashes and showers. Its thermostatic mixing valve design provides a consistent and controlled temperature, while its shuttle design allows for easy installation and maintenance. With a flow range of 1 to 78 gpm, this valve is compatible with a variety of applications, including high-pressure systems. Its brass construction and resistant coating ensure durability and resistance to corrosion, making it a valuable addition to any facility's emergency response plan.
Top product features:
- Deposits Resistant
- Mixing Chamber
- Shuttle Design
Top product applications:
- Eyewashes
- Showers
- Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers
The HAWS - 9202E is an emergency mixing valve designed for use with eyewash and shower units. is used to control mixing of hot and cold water to achieve a specified water output temperature range. is constructed of brass and is intended for use with eyewash and shower units manufactured by Haws, as applicable to the listed standards and dimensions. maintains water output temperature within the specified range of 60 to 95 °F under the stated operating conditions.
Key Features:
- - Thermostatic mixing valve accessory type for temperature control.
- - Operates when hot and cold water flows are supplied through the inlet connections.
- - Color: Yellow for visibility.
- - Material: Brass construction.
- - Intended for use with eyewash and shower units manufactured by Haws, as applicable to the listed standards and dimensions.
- - Dimensions: 10 in length x 4 3/4 in width x 4 7/8 in height x 10 1/8 in depth.
- - Inlet and outlet pipe size: 1 1/4 in with female NPT threads.
- - Rated flow range: 1 to 78 gpm (295 L)
- maximum flow rate: 78 gpm.
- - Maximum rated inlet pressure: 125 psi.
- - Maximum rated inlet water temperature: 180 °F.
- - Water output temperature range: 60 to 95 °F (when operated within the specified temperature and pressure limits).
- - Valve features a cold water bypass and shuttle design within the mixing chamber.
- - Includes deposit-resistant features (as specified by the manufacturer).
- - Is listed/claimed to comply with applicable standards including ANSI Z358.1, ASSE 1071, and CSA B125.3 (CSA certification as applicable).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 9.90
- Package Height: 12.10
- Package Weight: 16.75
