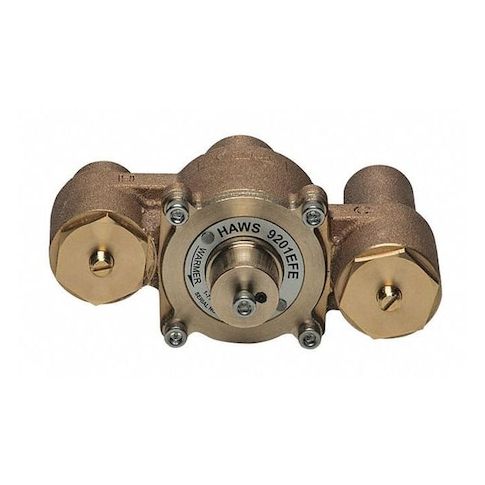

Emergency Mixing Valve, Brass, Yellow, For Use With, Single Eyewash MPN:9201EFE
Free Shipping
In Stock
The Haws Emergency Mixing Valve is a crucial accessory for single eyewash stations, ensuring a safe and controlled water temperature for emergency eye washes. This brass valve features a unique shuttle design and mixing chamber, allowing for a flow range of 1 to 12 gpm, making it an ideal solution for various industries. Its deposits-resistant design and thermostatic mixing capabilities provide a reliable and consistent water temperature, reducing the risk of eye injuries. Suitable for use in commercial, industrial, and institutional settings, this valve is a must-have for any facility with single eyewash stations, promoting a safe and healthy work environment.
Top product features:
- Deposits Resistant
- Flow Range of 1 to 12 gpm (45.4 L)
- Shuttle Design Mixing Chamber
Top product applications:
- Emergency Mixing Valve, Brass, Yellow, For Use With Single Eyewash stations to ensure safe and regulated water temperature for eye washes
- In industrial settings, this valve is used to mix hot and cold water to a safe temperature for emergency eye washes
- This valve is used in combination with single eyewash stations in medical facilities to provide a safe and regulated water temperature for emergency eye washes
The HAWS - 9201EFE is an emergency mixing valve designed as a thermostatic mixing valve accessory for single eyewash units. Mixes hot and cold water inputs for temperature mixing and provides flow-activated operation. The valve is constructed from brass and is intended for use with Haws-compatible eyewash equipment, fitting multiple manufacturer part numbers. Rated flow range of 1 to 12 gpm and rated water outlet temperature range of 60 to 90°F (for use with emergency eyewash applications per applicable standards).
Key Features:
- - Activation Type: Flow-Activated Mixing of Hot and Cold Water
- - Material: Brass
- - Color: Yellow
- - Dimensions: 6 in length x 2 5/8 in width x 5 1/4 in height x 6 1/8 in depth
- - Inlet Pipe Size and Thread: 1/2 in NPT female
- - Outlet Pipe Size and Thread: 3/4 in NPT female
- - Maximum Flow Rate: 12 gpm
- - Flow Range: 1 to 12 gpm
- - Maximum Inlet Pressure: 125 psi
- - Maximum Inlet Temperature: 180 Degrees F
- - Water Output Temperature Range: 60 to 90 Degrees F
- - Features include mixing chamber, shuttle design, and cold water bypass valve feature
- - Compatible with the listed Haws eyewash model numbers and specified replacement/part numbers from other manufacturers
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.30
- Package Width: 10.30
- Package Height: 7.60
- Package Weight: 6.90
