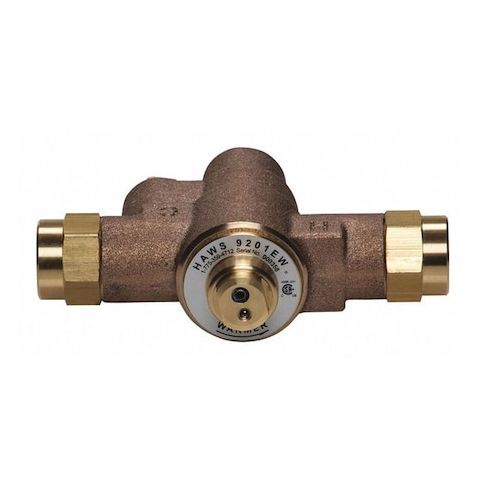

Emergency Mixing Valve, Brass, Yellow, For Use With, Single Eyewash MPN:9201EW
Free Shipping
In Stock
This Emergency Mixing Valve from Haws is a crucial accessory for single eyewash stations, ensuring safe and effective water flow in emergency situations. Made from durable brass, it features a thermostatic mixing valve with a shuttle design, providing consistent temperature control and resisting mineral deposits. With a flow range of 1-10 gpm, it can handle various water pressures and temperatures. Ideal for use in industrial, commercial, and educational settings, this valve helps protect employees from eye injuries and provides peace of mind for facility managers. Its compact design and easy installation make it a reliable solution for any workplace.
Top product features:
- Deposits Resistant
- Mixing Chamber
- Shuttle Design
Top product applications:
- Emergency Mixing Valve for use in laboratories to provide safe and controlled water temperature for eyewash stations.
- Emergency Mixing Valve for use in industrial settings to provide a safe and reliable source of tempered water for eyewash stations.
- Emergency Mixing Valve for use in medical facilities to provide a safe and controlled water temperature for eyewash stations in emergency situations.
The HAWS - 9201EW is an emergency mixing valve for installation with single eyewash stations. It features a thermostatic mixing valve that controls outlet water temperature within the specified range (60°F to 90°F) with a rating to activate at 85°F. The valve includes a cold water bypass and a mixing chamber with a shuttle design intended to control outlet flow and temperature within the specified ratings and includes features intended to reduce/minimize deposit accumulation. Constructed from brass, the valve is compatible with eyewash systems that use 1/2 in NPT female inlet/outlet connections and connects via 1/2 inch NPT female inlet and outlet piping.
Key Features:
- - Thermostatic mixing valve accessory type
- - Brass material construction
- - Yellow external color
- - Rated flow range: 1 to 10 gpm
- maximum flow rate: 10 gpm
- - Rated maximum inlet pressure: 125 psi and rated maximum inlet temperature: 180°F
- - Rated outlet temperature: 60°F to 90°F, rated to activate at 85°F
- - Cold water bypass valve feature
- - Compact dimensions: 5 in length, 5 in depth, 3 1/2 in height, and 1 5/8 in width
- - Inlet and outlet pipe: 1/2 in NPT, female thread type
- - Features include deposit resistance, mixing chamber, and shuttle design
- - Is certified/claimed to meet ANSI Z358.1, ASSE 1071, and CSA B125.3 (per manufacturer documentation)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.90
- Package Width: 4.80
- Package Height: 2.60
- Package Weight: 1.60
