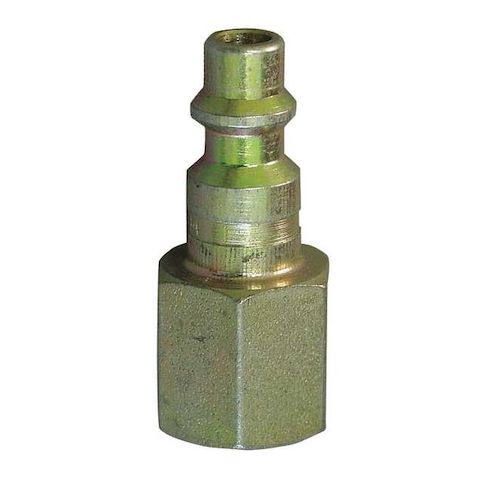

Coupler Plug, (F)NPT, 1/4, Brass MPN:11B

The HANSEN - 11B is a tool-free push-to-connect and disconnect coupling intended for tool-free connection and disconnection of air or fluid lines. It supports applications in air tools, general pneumatics, and construction or industrial plant environments, intended to provide a sealed connection under specified operating conditions to support continuous operation in pneumatic systems. This fitting is compatible with systems using the specified industrial interchange standards, for use with hoses and fittings that match the specified connection type (Female NPT 1/4"-18) and coupling size (1/4 in).

Key Features:

• - Material: Brass body with a brass finish for surface treatment.
• - Connection Type: Female NPT thread sized 1/4" -18.
• - Coupling Size: 1/4 in matching the hose fitting size of 1/4 in.
• - Coupling Component: Plug type with sleeve locking mechanism.
• - Seal Material: Nitrile, suitable for sealing under operating conditions.
• - Maximum Flow Rate: 679 liters per minute.
• - Maximum Working Pressure: 2,000 psi at 70°F.
• - Temperature Range: Operates between -40°F and 250°F.
• - Overall Length: 1.63 in.
• - Maximum Outside Diameter: 13/16 in.
• - Barbed: No, indicating a smooth connection end rather than a barbed hose tail.
