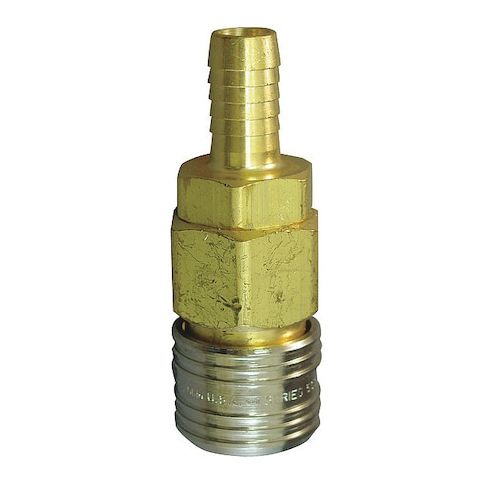

Coupler Body, Hose Barb, 1/4, Brass MPN:1600E
The Hansen 1600E Quick Connect Socket Coupler is a versatile and reliable solution for air tool and general pneumatic applications. Its tool-free hose connection and disconnection feature saves time and effort, while the integrated ball valve provides a secure seal for pneumatic and fluid transfer applications. Compatible with industrial pneumatic systems and 1/4 in hose inner diameters, this coupler is ideal for construction and industrial plants. With a maximum working pressure of 2,000 psi and operating temperature range of -40°F to 250°F, it can withstand demanding environments. Its compact design and gold and silver plating make it a durable and attractive addition to any pneumatic system.
Top product features:
- Tool-free hose connection and disconnection
- Integrated ball valve provides a connection with a nitrile seal for pneumatic and fluid transfer applications
- Sleeve locking mechanism secures the connection
Top product applications:
- Air tool applications
- General pneumatics
- Construction and industrial plants
The HANSEN 1600E hose coupling for tool-free hose connection and disconnection is used in air tool and general pneumatic applications (and compatible with industrial pneumatic systems). It supports air tools, general pneumatics, and construction and industrial plants. The coupling features a hose barb connection with a 1/4 in barb size and is compatible with 1/4 in hose inner diameters. Body material is brass (with brass plating), and the finish is brass plating. Integrated ball valve included, with a sleeve locking mechanism, providing a connection with a nitrile seal for pneumatic and fluid transfer applications. It is compatible with the Industrial Interchange standard.
Key Features:
- - Material: Brass with brass finish
- - Connection type: Hose barb with male hose fitting
- - Barb size and hose fitting size: 1/4 in
- - Maximum working pressure is 2,000 psi at 70°F
- - Maximum rated flow rate: 679 liters per minute (per product specifications)
- - Operating temperature range: -40°F to 250°F (per product specifications)
- - Integrated ball valve included
- - Coupling size and body size: 1/4 in
- - Coupling locking type: Sleeve
- - Overall length: 2.63 in
- - Seal material: Nitrile
- - Colors: Gold and silver visible plating
- - Compatible with Industrial Interchange fittings
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 90 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.21
