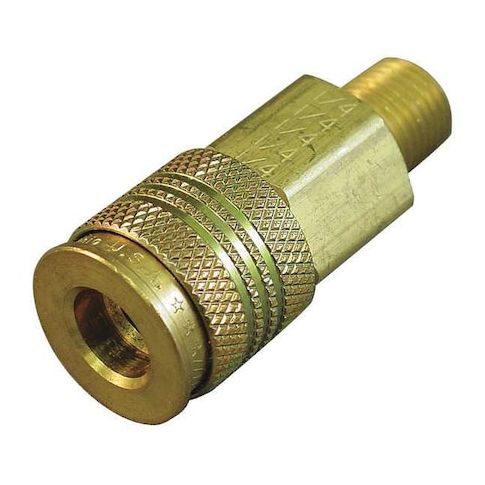

Coupler Body, (M)NPT, 1/4, Brass MPN:B23AS25M
The Hansen B23AS25M Coupler Body is a reliable and efficient solution for push-to-connect connections in various applications. Constructed from durable brass with a zinc-plated finish, this coupling features a 1/4 in male NPT thread and a push-to-connect locking mechanism, providing a secure and leak-free connection. Ideal for construction, air tools, and general pneumatics, this coupling is compatible with AR0210, Industrial Interchange, and Tru-Flate systems. With a maximum flow rate of 792 L/min and a working pressure of 150 psi at 70°F, this coupling is suitable for a wide range of applications, including air tools, pneumatic systems, and hydraulic equipment.
Top product features:
- Push-to-connect locking mechanism for secure connection and disconnection without tools.
- Integrated poppet valve to control flow and provide a sealed connection for air or fluid lines.
- Maximum flow rate of 792 L/min when used under specified operating parameters.
Top product applications:
- Construction
- Air tools
- General pneumatics
The HANSEN - B23AS25M is a hose coupling for push-to-connect connection and disconnection without tools. It supports applications in construction, air tools, and general pneumatics. Constructed from brass with a zinc-plated finish, this coupling features a male hose fitting with a 1/4 in size and an NPT connection type. It includes a poppet valve and utilizes a push-to-connect locking mechanism, provides a sealed connection for air or fluid lines when used with compatible couplings and within the specified pressure and temperature ranges. The coupling is compatible with AR0210, Industrial Interchange, and Tru-Flate systems.
Key Features:
- - Material: brass with zinc-plated finish.
- - Connection type: 1/4 in male NPT thread with a 1/4 in coupling size.
- - Coupling component: Socket with push-to-connect locking mechanism.
- - Includes an integrated poppet valve to control flow.
- - Maximum flow rate: 792 L/min (when used under conditions that meet the specified operating parameters).
- - Maximum working pressure: 150 psi at 70°F.
- - Operating temperature range: -40°F to 250°F.
- - Seal material: Nitrile.
- - Overall length: 2.25 inches
- maximum outside diameter: 15/16 inch.
- - Compatible with AR0210, Industrial Interchange, and Tru-Flate couplings.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.23
