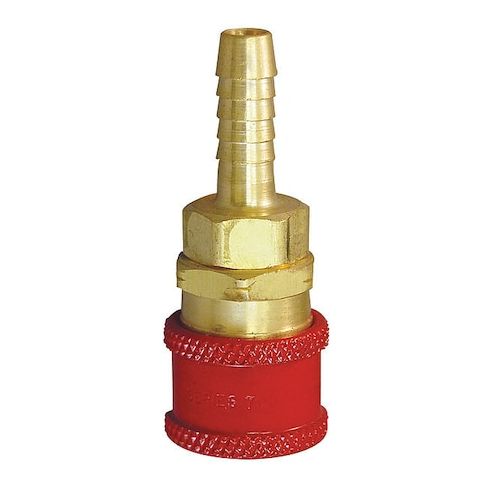

Quick Coupler Body, 700 Series, 1/4 in Hose Barb, Male, Brass, Red Sleeve MPN:RD706

The HANSEN - RD706 is a quick coupler body for use with quick-connect hose fittings designed for standard service applications. It is the stationary half that receives the plug and includes an internal valve, enabling connection and disconnection without tools in pneumatic and fluid systems. Constructed of brass with a brass finish, it is compatible with 700 Series plugs (as specified by manufacturer) and features a hose barb connection type for attaching a hose using the specified hose barb connection (1/4 in barb size).

Key Features:

• - Application: Standard Service (per specified intended use)
• - Connection Type: Hose Barb with a 1/4 in barb size
• - Body Size: 1/4"
• - Hose Fitting Gender: Male
• - Coupling Locking Type: Sleeve
• - Material and Finish: Brass
• - Seal Material: Buna-N
• - Color Code: Red
• - Max. Flow Rate: 157 gpm
• - Max. Working Pressure @ 70°F: 1500 psi
• - Operating Temperature Range: -40°F to 250°F
• - Compatible with: 700 Series Plugs
