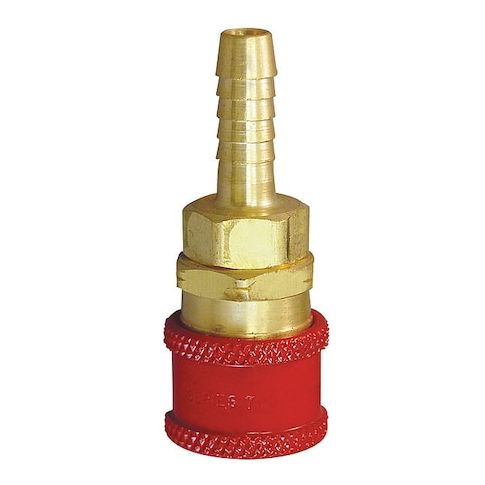

Quick Coupler Body, 700 Series, 1/4 in Body, 5/16 in Hose Barb, Brass, Red Sleeve MPN:RD707
The Hansen RD707 Quick Coupler Body is a reliable and efficient connection solution for various industrial applications. Its internal valve ensures leak-tight connections when properly connected, providing a secure seal for air, water, or other fluids. The brass construction and sleeve locking mechanism ensure durability and easy operation. Suitable for use in harsh environments, the coupler can withstand temperatures from -40°F to 250°F and pressures up to 1,500 psi. Ideal for use in pneumatic systems, HVAC, and other industries where quick and secure connections are critical. Its compact design and easy installation make it a valuable addition to any system.
Top product features:
- It provides for connection and disconnection using the specified quick-connect interface.
- The coupler is constructed from brass and features a sleeve locking mechanism.
- It connects via a 5/16 inch hose barb with a 1/4 inch quick connect air coupling body size.
Top product applications:
- Air Compressor Coupler
- Air Tool Coupler
- Pneumatic System Component
The HANSEN - RD707 is a quick coupler body with an internal valve that opens or closes when the plug is engaged, intended to be leak-tight when properly connected in accordance with the manufacturer’s connection and installation requirements. It provides for connection and disconnection using the specified quick-connect interface. The coupler is constructed from brass and features a sleeve locking mechanism. It connects via a 5/16 inch hose barb with a 1/4 inch quick connect air coupling body size.
Key Features:
- - Material: Brass construction with brass finish.
- - Connection Type: 5/16 in hose barb male fitting.
- - Coupling Locking Type: Sleeve lock mechanism.
- - Seal Material: Buna-N for sealing.
- - Maximum Flow Rate: 21 scfm.
- - Maximum Working Pressure: 1,500 psi at 70°F.
- - Operating Temperature Range: -40°F to 250°F.
- - Color Code: Red for identification.
- - Standards: [insert specific standard(s) or certification details, if applicable].
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.20
