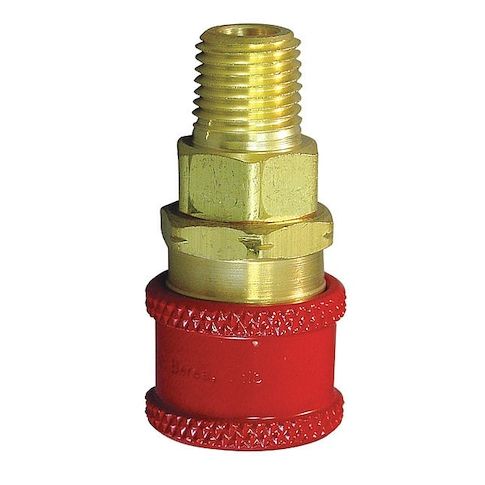

Quick Coupler Body, 700 Series, 1/4 in Body, 9/16 in (F)NPT LH, Brass, Red აცეტylene MPN:RD704L
The Hansen RD704L Quick Coupler Body is a reliable and efficient solution for standard service applications in pneumatic and fluid systems. Its hand-engagement design minimizes leakage and requires no separate tools for coupling, making it a convenient choice for a variety of industries. Suitable for applications such as pneumatic tools, fluid transfer, and hydraulic systems, this coupler body is built to withstand high pressures and temperatures. With a maximum working pressure of 1,500 psi and operating temperature range of -40°F to 250°F, it provides a durable and long-lasting connection. Its red color provides visual identification for easy recognition.
Top product features:
- Hand engagement allows for coupling without separate tools.
- The internal valve opens or closes upon engagement, controlling fluid flow.
- Buna-N seals minimize leakage when coupled with compatible components.
Top product applications:
- Pneumatic systems
- Fluid systems
- Automotive air suspension systems
The HANSEN - RD704L is a quick-connect coupler body designed for standard service applications in pneumatic and fluid systems. It serves as the stationary receptacle half of a quick-connect fitting, receiving the plug and controlling an internal valve that opens or closes upon engagement. Constructed from brass with Buna-N seals, this coupler body is configured for hand engagement (no separate tools required for coupling) and is intended to minimize leakage when coupled with compatible components and installed per specifications. The red color provides visual identification.
Key Features:
- - Body size: 1/4"
- - Connection size and thread: 9/16" (Female) with left-hand (F)NPT thread
- - Maximum working pressure: 1,500 psi at 70°F
- - Maximum flow rate: 157 gallons per minute
- - Operating temperature range: -40°F to 250°F
- - Coupling locking type: Sleeve
- - Material: Brass body with Buna-N seals
- - Hose connection thread direction: Left hand
- - Compatible with 700 Series plugs
- - Color code: Red
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.21
