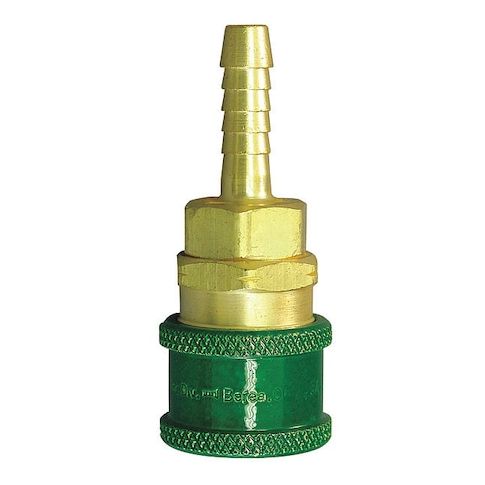

Coupler Body, Hose Barb, 1/4, Brass MPN:GR607SL
The Hansen GR607SL Coupler Body is a reliable and leak-resistant solution for pneumatic and fluid systems, ideal for oxygen service and other gases including compressed air. Constructed from brass with a brass finish, this coupler body features a sleeve-lock mechanism that ensures a secure connection with 600 Series plugs. With a maximum flow rate of 21 scfm and a maximum working pressure of 1,500 psi, it's suitable for a wide range of applications, including industrial, medical, and laboratory settings. Its compact design and ease of use make it an excellent choice for those seeking a reliable and efficient connection solution.
Top product features:
- Leak-resistant connection using a sleeve-lock mechanism
- Provides a connection using 600 Series plugs (per specified interface requirements)
- Includes an internal valve that actuates upon engagement
Top product applications:
- Oxygen service in pneumatic systems
- Fluid systems
- Compressed air systems
The HANSEN - GR607SL is a quick coupler body intended for oxygen service in pneumatic and fluid systems. It serves as the stationary receptacle half of a quick-connect hose fitting, receiving the plug (adapter) and includes an internal valve that actuates upon engagement. Constructed from brass with brass finish/coating, this coupler body provides a connection using a sleeve-lock mechanism that is leak-resistant and compatible with 600 Series plugs (per specified interface requirements). It is used with 1/4 in quick connect air couplings (as specified for this model) and has a 5/16 in hose barb connection size, with hose barb connection size: 5/16 in (for hoses configured with a 5/16 in barb).
Key Features:
- - Material: Brass construction with brass finish/coating.
- - Application: Intended for oxygen service and other gases including compressed air.
- - Connection type: Male hose barb with 5/16 in connection size.
- - Compatible with 600 Series plugs (per specified interface requirements).
- - Coupling locking type: Sleeve lock mechanism.
- - Maximum flow rate of 21 scfm.
- - Maximum working pressure of 1,500 psi at 70°F.
- - Operating temperature rating: -40°F to 250°F.
- - Seal material: Buna-N.
- - Color code: Green.
- - Compliance with applicable OSHA requirements as stated by the manufacturer.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.18
