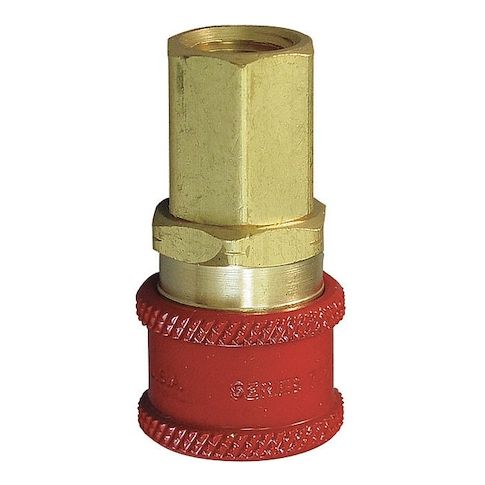

Quick Coupler Body, 700 Series, 1/4 in Female NPTF, Brass, Red Sleeve Lock MPN:RD702
Quick Coupler Body, 700 Series, 1/4 in Female NPTF, Brass, Red Sleeve Lock
The HANSEN - RD702 is a quick-connect coupler body designed for use in standard service pneumatic and fluid systems. It serves as the stationary receptacle half of a quick-connect hose fitting, receiving the plug and includes an internal valve actuated by engagement of the mating quick-connect fitting. This coupler body features a sleeve locking type for engagement and disengagement without additional hand tools. It mates with 700 Series plugs and is rated for use at the specified maximum working pressure and operating temperature range.
Key Features:
- - Body size: 1/4"
- - Connection size and thread: 1/4"-18 NPTF (female thread)
- - Coupling locking type: Sleeve
- - Material and finish: Brass body with brass finish
- - Seal material: Buna-N
- - Maximum flow rate: 21 SCFM
- - Maximum working pressure at 70°F: 1,500 psi
- - Operating temperature range: -40°F to 250°F
- - Color code: Red
- - Compliant with OSHA standards
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on February 5, 2026 9:29am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
