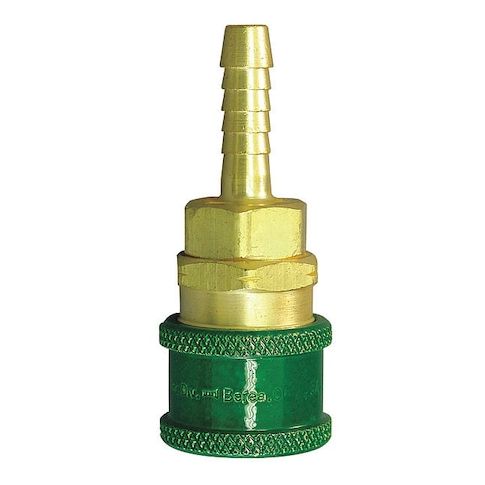

Coupler Body, Hose Barb, 1/4, Brass MPN:GR607
The Hansen GR607 Coupler Body is a versatile and reliable quick-connect solution for standard service pneumatic, hydraulic, and fluid systems. Designed for use with 600 Series plugs, this brass coupler body features a green color code for easy identification and a hose barb connection with a 5/16 in barb size. With a maximum flow rate of 157 gpm and a working pressure of 1,500 psi, this coupler body is suitable for a wide range of applications, including manufacturing, construction, and maintenance. Its compact design and easy engagement make it an ideal choice for applications where quick connections are essential.
Top product features:
- Rated maximum flow rate: 157 gpm (under specified test conditions)
- Sleeve-type coupling locking mechanism
- Rated maximum working pressure: 1,500 psi at 70°F
Top product applications:
- Pneumatic systems
- Hydraulic systems
- Fluid systems
The HANSEN - GR607 is a quick coupler body designed for use in standard service pneumatic, hydraulic, and fluid systems. It serves as the stationary half of a quick-connect hose fitting, receiving the plug (adapter) and contains an internal valve actuated upon engagement with the corresponding plug. It is compatible with 600 Series plugs (per manufacturer specifications). Its brass construction and brass finish are constructed with brass (body) and a Buna-N seal, while its seal is made of Buna-N. The product is color-coded green for visual identification and includes a hose barb connection with 5/16 in barb size, has a 1/4 in quick-connect air coupling body size.
Key Features:
- - Rated maximum flow rate: 157 gpm (under specified test conditions)
- - Rated maximum working pressure: 1,500 psi at 70°F
- - Rated operating temperature range: -40°F to 250°F
- - Sleeve-type coupling locking mechanism
- - Male hose fitting gender
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.18
