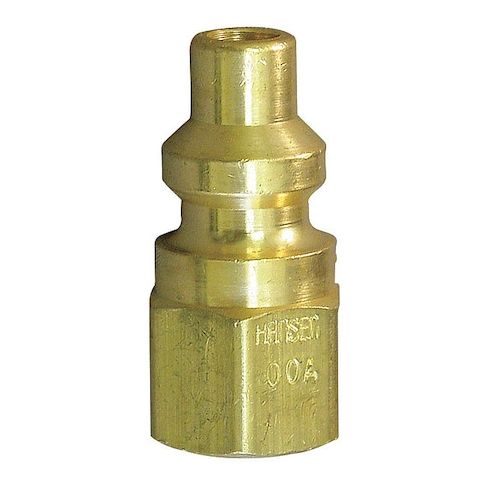

Quick Coupler Plug, 600 Series, 1/4 in Body, 9/16 in FNPT, Brass, Oxyacetylene Service MPN:05R

The HANSEN - 05R is a quick coupler plug designed for standard and oxyacetylene service, is designed for quick connect and disconnect of fluid or air lines using the sleeve locking mechanism. It functions as the male insert that connects with a matching coupler to form a seal when connected to a matching coupler. Brass body and Buna-N seals are specified for operation within -40°F to 250°F, supporting maximum rated pressure: 1,500 psi at 70°F and maximum rated flow rate: 157 gallons per minute (gpm). This plug is rated for use with 600 Series sockets and intended for use in pneumatic and fluid transfer systems that meet the product’s specified pressure, temperature, and connection requirements.

Key Features:

• - Material: Brass body with Buna-N seal for fluid and gas compatibility.
• - Connection size: 9/16" thread size with (F)NPT female hose fitting and right-hand thread direction.
• - Body size: 1/4" quick connect air coupling.
• - Coupling locking type: Sleeve mechanism for is designed to engage using the sleeve mechanism.
• - Operating temperature range: -40°F to 250°F.
• - Maximum rated pressure: 1,500 psi at 70°F.
• - Maximum rated flow rate: 157 gallons per minute.
• - Application compatibility: Is compatible with compressed air, oxygen, and other gases when used with compatible fittings and within the specified pressure and temperature ratings.
