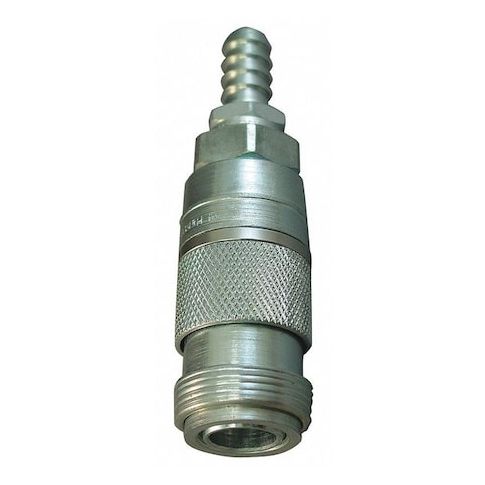

Coupler Body, (F)NPT, 1/4, Carbon Steel MPN:23203024

The HANSEN - 23203024 is a hose coupling for tool-free connection and disconnection using a push/pull locking mechanism. It provides a sealed connection (seal material: nitrile) compatible with pneumatic and general fluid transfer applications within the specified temperature range (-40°F to 200°F) and maximum working pressure (250 psi at 70°F). The coupling accommodates a 1/4 in hose I.D. and features a hose barb connection type with a male fitting gender (hose I.D. accommodated: 1/4 in), enabling secure hose attachment using a hose barb connection type.

Key Features:

• Material: Carbon steel construction with a zinc trivalent finish for surface treatment.
• Coupling component: Socket with an industrial interchange type compatible with industrial interchange couplers and pneumatic air tools.
• Coupling locking type: Safety vent mechanism (locking type: safety vent mechanism) for secure locking.
• Maximum flow rate: 1,784 liters per minute.
• Seal material: Nitrile providing fluid sealing.
• Includes a poppet valve type integrated into the fitting to control fluid or air flow upon connection and disconnection.
• Overall length: 4.38 inches, with a maximum outside diameter of 1.25 inches.
