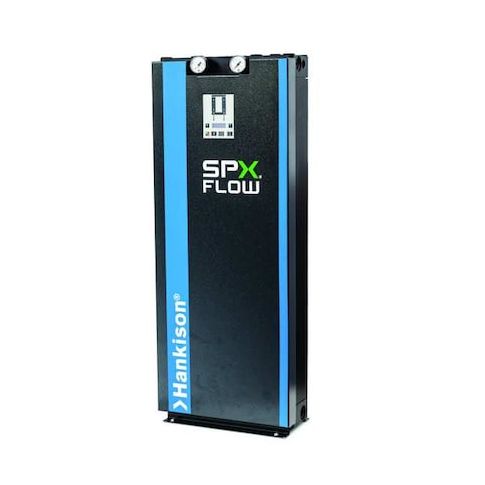

Modular Heatless Desiccant Dryer MPN:HSHD-13
Modular Heatless Desiccant Dryer
The Hankison Modular Heatless Desiccant Dryer is a reliable and efficient solution for drying compressed air in various industrial applications. This compact dryer is designed for use in laboratories, medical facilities, and manufacturing environments where high-purity air is required. With a maximum flow rate of 13 cfm and a dew point of -40°F, it effectively removes moisture and contaminants from the air stream. The dryer's modular design and heatless operation make it a cost-effective and easy-to-maintain solution for applications where compressed air is critical to process quality and equipment performance. Ideal for use in cleanrooms, medical equipment, and precision instruments.
Top product features:
- Maximum Flow Rate 13 cfm
- Heatless operation to conserve energy
- Dew Point -40 Degrees F for reliable dry air
Top product applications:
- Pharmaceutical manufacturing: The Hankison Modular Heatless Desiccant Dryer is suitable for use in pharmaceutical manufacturing to remove moisture from compressed air, ensuring a dry and clean environment for sensitive processes.
- Food processing: This product is also applicable in food processing facilities where dry compressed air is required for packaging, conveying, or other processes, helping to prevent contamination and spoilage.
- Laboratory settings: The Modular Heatless Desiccant Dryer can be used in laboratory settings where precise control over compressed air moisture is necessary for experiments, testing, and equipment operation.
Heatless Modular Desiccant Air Dryers, Maximum Flow Rate 13 cfm, Voltage 120V, Phase Single, Maximum Operating Pressure 217 psi, Maximum Operating Temperature 122 Degrees F, Air Inlet Size 1/2 in, Air Inlet Type NPT, Full Load Current 0.7 A, ISO Class 1, 2, Dew Point -40 Degrees F, Pressure Drop 6 psi, Air Outlet Size 1/2 in, Air Outlet Type NPT, Bracket Kit Included No, Drain Included Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.60
- Package Width: 23.50
- Package Height: 16.30
- Package Weight: 100.00
Product info last updated on February 20, 2026 2:36pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
