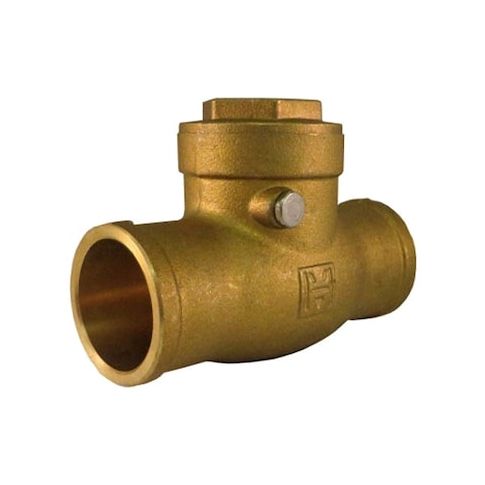

Swing Check Valve, 968 Series, 2 in Pipe Size, Sweat x Sweat, Inline, Brass Body MPN:968 2
Free Shipping
In Stock
The 2in Solder Brass Swing Check Valve from Hammond Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve provides a secure check function, preventing backflow and ensuring safe operation. Its brass construction and 0.750-1.000 psi cracking pressure make it ideal for water-based systems, with a flow rate of 131 gpm at maximum water pressure. Suitable for residential, commercial, and industrial use, this valve is perfect for plumbing, HVAC, and hydronic heating systems, providing a durable and long-lasting solution for a wide range of applications.
Top product features:
- Swing design allows for easy installation and maintenance
- Brass body provides corrosion resistance and durability
- Cracking pressure is adjustable to prevent backflow at low pressures
Top product applications:
- Plumbing systems in industrial facilities
- HVAC systems in commercial buildings
- Water treatment plants and distribution systems
HAMMOND VALVE Series 968 is a 2 in. brass swing check valve with an inline body design for one-way flow control in compatible gas, oil, and water systems. Its swing mechanism allows flow in one direction and is intended to help limit reverse flow. The valve features a full-flow design, supports horizontal or vertical mounting, and is rated for up to 200 psi non-shock CWP, with a maximum water pressure of 200 psi at 150 Degrees F.
Key Features:
- Swing check design: Inline swing mechanism for one-way flow control, intended to help limit reverse flow.
- Material construction: Brass body, brass check mechanism, brass seat, and brass seal.
- Connection size: 2 in. nominal valve size with 2 in. connection size on both sides.
- Connection type: FNPT x FNPT.
- Flow capacity: 131 gpm flow rating with Cv of 131.
- Cracking pressure: Listed as 0.750 to 1.000 psi
- additional cracking pressure value stated as 0.5 psi.
- Pressure and temperature: 200 psi maximum operating pressure
- operating temperature range -20 Degrees F to 150 Degrees F.
- Installation: Horizontal or vertical mounting orientation.
- Dimensions: 6 1/8 in. overall length.
- Standards: ASTM B283, ASTM B584, C37700, C85700.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 5.90
- Package Height: 3.40
- Package Weight: 5.92
