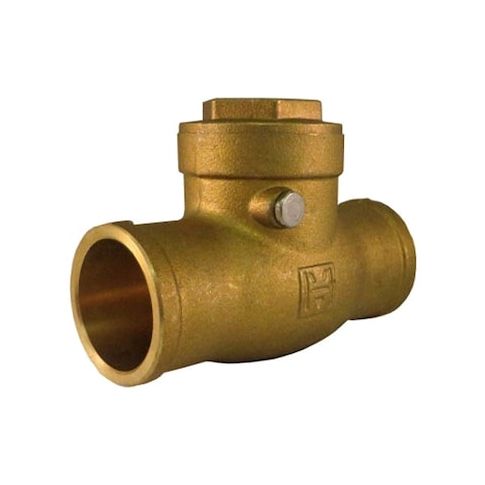

1-1/4" Solder Brass Swing Check Valve MPN:968 1 1/4
Free Shipping
In Stock
The 1-1/4in Solder Brass Swing Check Valve from Hammond Valve is a reliable and efficient solution for various applications. This check valve allows fluid to flow in one direction while preventing backflow, ensuring a safe and consistent flow rate of up to 54 gpm. Suitable for use in water and steam systems, it withstands pressures up to 200 psi at 150°F. Its compact design and inline swing mechanism make it ideal for use in plumbing, HVAC, and industrial settings, where space is limited. This valve is a cost-effective and durable solution for maintaining system integrity and preventing contamination.
Top product features:
- 1-1/4in Solder Brass Swing Check Valve features:
- Inline swing design allows for easy installation and maintenance
- Valve body is made of brass for durability and resistance to corrosion
Top product applications:
- Industrial plumbing systems
- Commercial water supply systems
- Steam power plants
Hammond Valve Series 968 is a 1-1/4 in. swing check valve with female solder/sweat connections and an inline brass body. It uses a hinged swing mechanism for one-way flow applications and reverse-flow reduction in general-purpose piping systems handling gas, oil, or water. The valve supports horizontal or vertical mounting and is rated for 200 psi WOG.
Key Features:
- Swing check design: Hinged swing mechanism for one-way flow applications.
- Construction: Brass body, brass check mechanism, brass seat, and brass seal material.
- Size: 1-1/4 in. nominal valve size with 1-1/4 in. connections on both sides.
- Connections: Female solder/sweat ends.
- Flow data: 54 gpm
- Cv 54.
- Cracking pressure: 0.5 psi.
- Pressure rating: 200 psi WOG
- 200 psi non-shock CWP
- maximum water pressure 200 psi at 150 degrees F.
- Temperature range: -20 degrees F to 150 degrees F.
- Mounting orientation: Horizontal or vertical.
- Dimensions: 4-7/16 in. length
- 2 in. cap-to-inlet center
- 2 in. height from cap to inlet center.
- Standards: ASTM B584, C37700.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.10
- Package Height: 2.20
- Package Weight: 1.10
