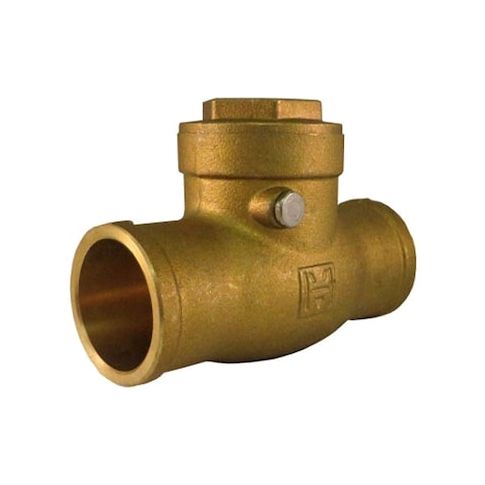

Swing Check Valve, 968 Series, 3/4 in, Sweat x Sweat, Inline, Brass MPN:968 3/4

• HAMMOND VALVE 968 is a 3/4 in swing check valve with an inline brass body and swing mechanism for one-way flow control in general-purpose piping systems. It is specified for gas, oil, and water service, with listed flow capacity: 18 gpm

• Cv 18. Mounting orientation: horizontal or vertical. This valve is intended for one-way flow applications.

  Key Features:

  • Valve type: Swing check valve with inline swing mechanism.
  • Body and internal materials: Brass body, brass check mechanism, brass seat, and brass seal.
  • Connection size: 3/4 in nominal valve size with 3/4 in connections on both sides.
  • Connection style: FNPT x FNPT.
  • Pressure rating: 200 psi WOG
  • 200 psi non-shock CWP
  • maximum water pressure 200 psi at 150 degrees F.
  • Cracking pressure: 0.750 to 1.000 psi.
  • Flow capacity: 18 gpm
  • Cv 18.
  • Temperature range: -20 degrees F minimum to 150 degrees F maximum.
  • Mounting orientation: Horizontal or vertical.
  • Dimensions: 3 1/8 in length.
  • Standards: ASTM B584, C37700.
  • Valve series: 968.
