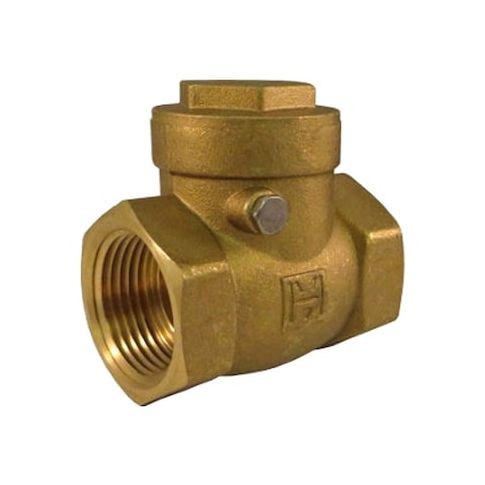

1-1/2" FNPT Brass Swing Check Valve MPN:967 1 1/2
Free Shipping
In Stock
The 1-1/2in FNPT Brass Swing Check Valve from Hammond Valve is a reliable and efficient solution for various fluid control applications. Designed for inline use, this valve ensures one-way flow and prevents backflow, making it ideal for water supply systems, steam distribution networks, and HVAC systems. Its brass construction provides excellent durability and resistance to corrosion, while its compact design allows for easy installation in tight spaces. With a flow rate of 76 gpm, this valve is suitable for a range of applications, from residential to commercial use, and can withstand pressures up to 200 psi at 150°F.
Top product features:
- 1-1/2in inline swing check valve
- Swing mechanism allows for horizontal or vertical mounting
- Full flow capability allows for 76 gpm flow rate
Top product applications:
- Pressure-Reducing Systems
- Steam Traps
- Water Supply Systems
HAMMOND VALVE Series 967 is a 1-1/2 in. brass swing check valve with inline FNPT x FNPT threaded connections. It uses a swing mechanism and is configured for one-direction flow applications in general-purpose piping systems handling gas, oil, and water. The valve features a full-flow design, horizontal or vertical mounting, and a pressure rating of 200 psi WOG / 200 psi non-shock CWP.
Key Features:
- Valve type: Swing check valve with inline body design
- Body, check mechanism, seat, and seal material: Brass
- Connection size: 1-1/2 in. on both sides
- Connection type: Female NPT x Female NPT
- threaded
- Flow capacity: 76 gpm
- Cv: 76
- Cracking pressure: 0.750 to 1.000 psi
- Maximum pressure: 200 psi WOG
- maximum water pressure: 200 psi at 150 degrees F
- Operating temperature range: -20 degrees F to 150 degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: 3.23 in.
- length: 3-1/2 in.
- Standards: ASTM B584, C37700
- Counterweight: No
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.50
- Package Height: 2.50
- Package Weight: 1.66
