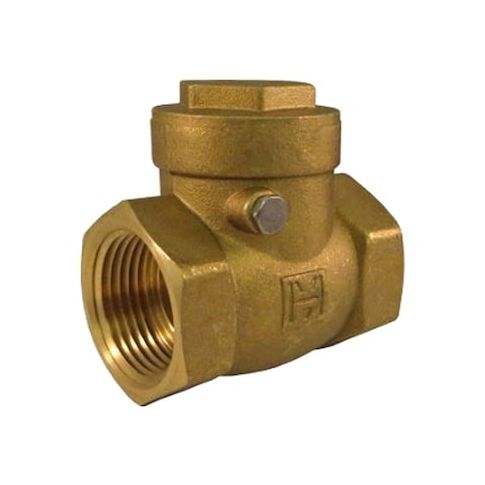

Swing Check Valve, 3.125 in Overall L MPN:967 1 1/4
Out Of Stock
This 1-1/4in FNPT Brass Swing Check Valve from Hammond Valve is a reliable and efficient solution for various applications, including water supply systems, HVAC, and industrial processes. Its single flow design and inline swing mechanism ensure smooth flow and prevent backflow, while its brass body and seat provide durability and resistance to corrosion. With a flow rate of 54 gpm and a maximum water pressure of 200 psi, this valve is suitable for a wide range of applications, including residential and commercial plumbing, and is also suitable for use in cold temperatures down to -20°F.
Top product features:
- 1-1/4in FNPT Brass Swing Check Valve has a single flow design.
- The valve has an inline swing mechanism and body design.
- The valve can handle a maximum water pressure of 200 psi at 150 Degrees F.
Top product applications:
- Potable water distribution systems
- Steam trap systems
- Industrial process control systems
The HAMMOND VALVE 967 swing check valve is an inline, general-purpose check valve with a brass body and swing mechanism. It is intended for one-way flow applications in compatible gas, oil, and water threaded piping systems. This valve features a full-flow design, FNPT x FNPT connections, and can be mounted in horizontal or vertical positions.
Key Features:
- Valve type: Swing check valve with inline body design and single-flow configuration
- Size: 1 1/4 in nominal valve size with 1 1/4 in FNPT female connections on both ends
- Material: Brass body, brass check mechanism, brass seat, and brass seal
- Pressure rating: 200 psi WOG
- 200 psi non-shock CWP
- 200 psi maximum water pressure at 150 degrees F
- Cracking pressure: 0.750 to 1.000 psi
- Flow capacity: Cv 54
- flow rate 54 gpm
- Temperature range: -20 to 150 degrees F
- Mounting orientation: Horizontal or vertical
- Dimensions: 3 1/8 in length
- 2 in cap to inlet center
- Standards: ASTM B584, C37700
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.20
- Package Height: 2.10
- Package Weight: 1.22
