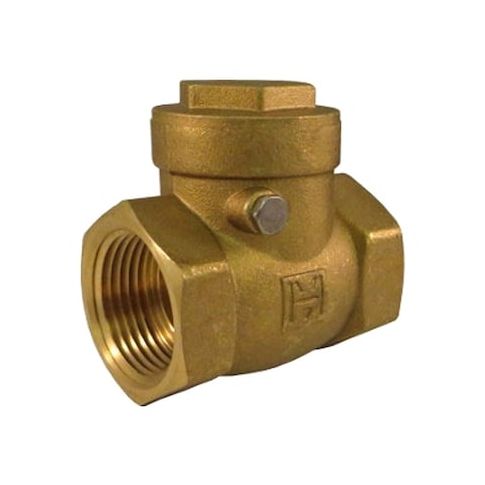

Swing Check Valve, 967 Series, 3/4 in, FNPT x FNPT, Inline, Brass MPN:967 3/4

• HAMMOND VALVE 967 is a 3/4 in swing check valve with an inline brass body and FNPT x FNPT threaded connections. It uses a hinged swing mechanism for one-direction flow applications and backflow reduction in general-purpose gas, oil, and water service. This valve is rated for horizontal or vertical mounting and features a full-flow design with an 18 gpm flow rating.

  Key Features:

  • 3/4 in nominal valve and pipe size
  • Inline swing check design with single flow path
  • Brass body, brass check mechanism, brass seat, and brass seal
  • Female NPT connections on both ends
  • FNPT x FNPT connection type
  • Cracking pressure: 0.750 to 1.000 psi
  • Flow rating: 18 gpm
  • Cv: 18
  • Maximum pressure: 200 psi WOG
  • Maximum water pressure: 200 psi at 150 degrees F
  • 200 psi non-shock CWP
  • Operating temperature range: -20 degrees F to 150 degrees F
  • Mounting orientation: horizontal or vertical
  • Overall length: 2.11 in
  • Standards: ASTM B584, C37700
