Check Valve, 967 Series, Swing, 2 in, FNPT x FNPT, Inline, Brass Body MPN:967 2
Free Shipping
In Stock
The Hammond Valve 2in FNPT Brass Swing Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve allows for smooth flow control while preventing backflow. Its brass construction ensures durability and resistance to corrosion, making it ideal for use in water and steam systems. With a flow rate of 131 gpm, this valve is perfect for residential, commercial, and industrial applications, including irrigation systems, HVAC, and plumbing. Its compact size and easy installation make it a convenient choice for a wide range of projects.
Top product features:
- 2in FNPT Brass Swing Check Valve has a single flow design for efficient fluid flow.
- It has an inline swing mechanism for easy installation and maintenance.
- The valve is designed for horizontal and vertical mounting orientations.
Top product applications:
- Water Supply Systems
- Steam Systems
- Chemical Process Plants

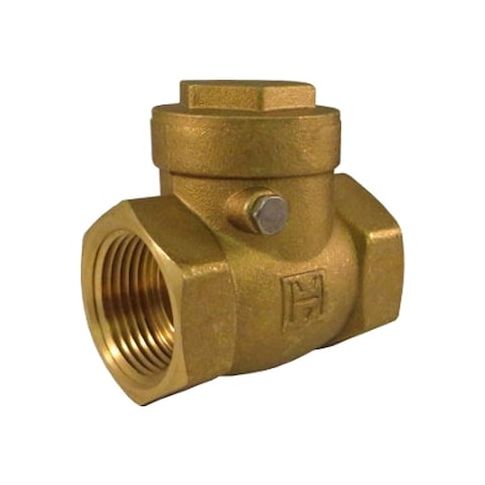

Hammond Valve 967 is a 2 in. swing check valve with an inline brass body and FNPT x FNPT threaded connections. It uses a swing mechanism and is intended for one-way flow applications and reverse-flow reduction in compatible piping systems handling gas, oil, or water. The valve supports horizontal or vertical mounting and has a Cv rating of 131 and a rated flow of 131 gpm.
Key Features:
- Valve type: Swing check valve with inline body design
- Body material: Brass
- Check mechanism material: Brass
- Seat material: Brass
- Seal material: Brass
- Connection size: 2 in. on both sides
- Connection type: Female NPT x Female NPT
- Cracking pressure: 0.750 to 1.000 psi
- Flow capacity: 131 gpm
- Cv rating: 131
- Pressure rating: 200 psi WOG
- 200 psi non-shock CWP
- 200 psi at 150 degrees F
- Operating temperature range: -20 to 150 degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: 3.7 in.
- Standards: ASTM B584, C37700
- Valve series: 967
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.30
- Package Height: 3.00
- Package Weight: 2.58
