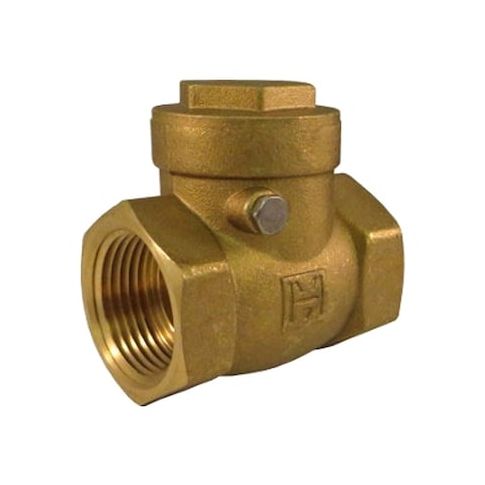

Swing Check Valve, 967 Series, 1 in, FNPT x FNPT, Inline, Brass MPN:967 1
Free Shipping
In Stock
The 1in FNPT Brass Swing Check Valve from Hammond Valve is a reliable and efficient solution for various applications. Suitable for use in horizontal or vertical installations, this valve provides a cracking pressure of 0.750 to 1.000 psi, allowing for precise control of fluid flow. Its brass construction ensures durability and resistance to corrosion, making it ideal for use in water and steam systems. With a flow rate of 31 gpm, this valve is perfect for applications where high flow rates are required, such as in plumbing, HVAC, and industrial processes. Its compact size makes it easy to install and maintain.
Top product features:
- Swing action allows for easy manual operation of the valve
- Inline design enables installation in a variety of piping configurations
- Full flow capability allows for maximum water flow rate of 31 gpm
Top product applications:
- Potable water distribution systems
- Steam traps in industrial processes
- Hydraulic systems in heavy machinery
HAMMOND VALVE Series 967 is a 1 in swing check valve with an inline brass body and FNPT x FNPT threaded connections. It uses a hinged swing mechanism for one-way flow applications and is intended to reduce reverse flow in general-purpose gas, oil, and water piping systems. This valve supports horizontal or vertical mounting and has a 31 gpm flow rating.
Key Features:
- Type: Swing check valve with inline body design
- Body material: Brass
- Check mechanism, seat, and seal material: Brass
- Connection type: 1 in FNPT x FNPT, female on both ends
- Flow capacity: 31 gpm
- Cv: 31
- Cracking pressure: 0.750 to 1.000 psi
- Maximum pressure: 200 psi WOG
- maximum water pressure: 200 psi at 150 Degrees F / 200 psi non-shock CWP
- Operating temperature range: -20 Degrees F to 150 Degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: 2.52 in
- Standards: ASTM B584, C37700
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 5.90
- Package Height: 3.30
- Package Weight: 3.60
