1-1/2" Solder Brass Swing Check Valve MPN:968 1 1/2
Free Shipping
In Stock

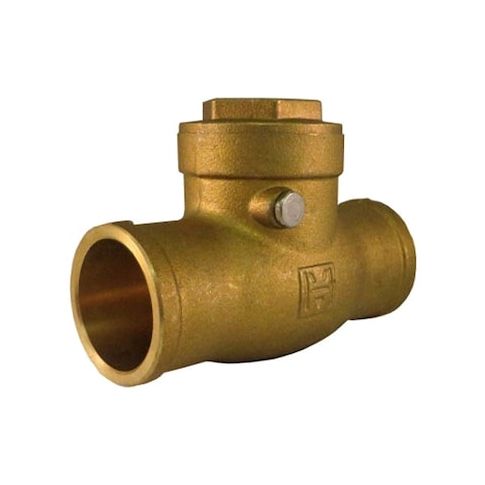

The 1-1/2in Solder Brass Swing Check Valve from Hammond Valve is a reliable and efficient solution for various applications. Suitable for use in horizontal or vertical orientations, this valve allows for smooth flow control while preventing backflow. Its brass body and seal material ensure durability and resistance to corrosion. With a maximum water pressure of 200 psi at 150°F, it's ideal for use in residential and commercial plumbing systems, as well as in industrial applications where high-pressure steam is not required. Its compact design and easy installation make it a versatile choice for a range of projects.
Top product features:
- 1-1/2in Solder Brass Swing Check Valve has a single flow design that allows for inline installation.
- The valve has a cracking pressure of 0.750 to 1.000 psi, providing a specific pressure threshold for opening.
- The valve is designed for horizontal or vertical mounting, allowing for flexibility in installation orientation.
Top product applications:
- Industrial Process Control Systems
- Steam Power Generation Systems
- Water Treatment Facilities
HAMMOND VALVE Series 968 is a 1-1/2 in swing check valve with a brass body and solder connections. It uses an inline swing mechanism to allow one-way flow and help prevent reverse flow in gas, oil, and water piping systems. This valve is rated for horizontal or vertical mounting and has a listed flow rate of 76 gpm and Cv of 76.
Key Features:
- Valve type: Swing check valve with inline body design
- Size: 1-1/2 in nominal valve size with 1-1/2 in connections on both sides
- Connection type: Solder/sweat, female x female
- Body and internal materials: Brass body, brass check mechanism, brass seat, and brass seal
- Pressure rating: 200 psi maximum operating pressure
- 200 psi non-shock CWP
- 200 psi at 150 Degrees F maximum water pressure
- Temperature range: -20 Degrees F minimum to 150 Degrees F maximum
- Cracking pressure: 0.5 psi
- listed cracking pressure range: 0.750 to 1.000 psi
- Flow capacity: 76 gpm
- Mounting orientation: Horizontal or vertical
- Overall length: 4.33 in
- length: 5 in
- Standards: ASTM B283, ASTM B584, C37700, C85700
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.40
- Package Height: 2.40
- Package Weight: 1.60
