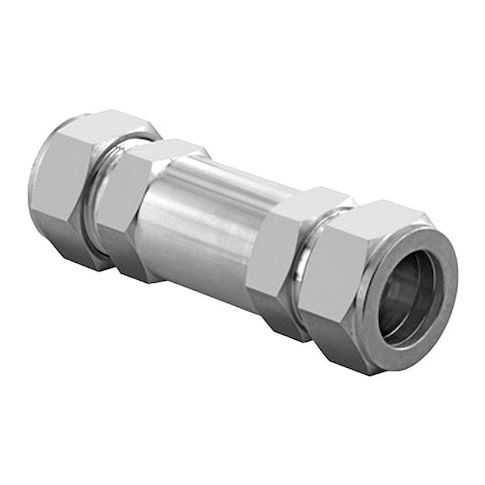

Instrumentation Check Valve, H400 Series, Inline Spring, 1/2 in Let-Lok x Let-Lok, 1 psi MPN:H-400-SS-L-1/2-1PSI
Free Shipping
In Stock
The Instrumentation Check Valve from Ham-Let is a high-quality, stainless steel valve designed for precise control and reliability in various applications. Suitable for use in demanding environments, this valve ensures smooth flow and prevents backflow, minimizing the risk of damage and contamination. Its compact size and lightweight design make it ideal for use in tight spaces and remote locations. The Instrumentation Check Valve is perfect for use in industries such as oil and gas, chemical processing, and pharmaceuticals, where precise control and reliability are critical. Its fast lead time and flexible ordering options make it an ideal choice for businesses of all sizes.
Top product features:
- It allows for the regulation of fluid flow in a system.
- It is designed to prevent backflow and ensure one-way operation.
- It is constructed from stainless steel for durability and resistance to corrosion.
Top product applications:
- High-pressure gas systems
- Petrochemical processing
- Power generation
HAM-LET H-400-SS-L-1/2-1PSI is an instrumentation check valve configured for one-direction flow and reverse-flow checking in instrument and process control lines. This 2-way inline spring valve uses a poppet check mechanism for use with compatible chemical, gas, oil, and water applications, based on system requirements and material compatibility. It features 1/2 in Let-Lok x Let-Lok connections and can be installed in horizontal or vertical orientations.
Key Features:
- Valve type: Instrumentation check valve with inline body design
- Body material: 316 stainless steel
- Check mechanism: 316 stainless steel poppet
- Seat material: 316 stainless steel
- Seal material: FKM
- Spring material: 302 stainless steel
- Connection size: 1/2 in x 1/2 in
- Connection type: Let-Lok x Let-Lok
- Cracking pressure: 1 psi
- Flow coefficient (Cv): 1.68
- Maximum operating pressure: 3,000 psi
- Maximum water pressure: 3,000 psi at -10°F to 100°F
- Operating temperature range: -10°F to 375°F
- Overall length: 3.03 in
- Hex size: 15/16 in
- Standards: C.R.N 0C16552.2
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.39
