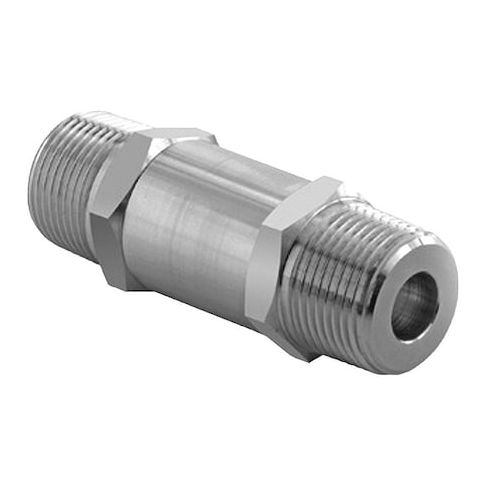

Instrumentation Check Valve, H400 Series, Inline Spring, 1/2 in MNPT x MNPT, 316 SS MPN:H-480-SS-N-1/2-1/3PSI

HAM-LET H-480-SS-N-1/2-1/3PSI is an instrumentation check valve for one-way flow control in small-bore liquid and gas systems. This inline spring valve uses a poppet check mechanism to help prevent reverse flow in compatible liquid and gas lines. It features 1/2 in male NPT connections on both ends and is rated for horizontal or vertical mounting.

Key Features:

• Valve type: Instrumentation check valve with inline body design and 2-way flow path
• Connection style: 1/2 in MNPT x MNPT
• Body material: 316 stainless steel
• Check mechanism: 316 stainless steel poppet
• Seat material: 316 stainless steel
• Seal material: FKM
• Spring material: 302 stainless steel
• Cracking pressure: 0.33 psi
• Flow capacity: Cv 1.68
• Maximum operating pressure: 3,000 psi
• Temperature range: -10 degrees F to 375 degrees F
• Overall length: 2.77 in
• Hex size: 15/16 in
• Standard: C.R.N 0C16552.2
