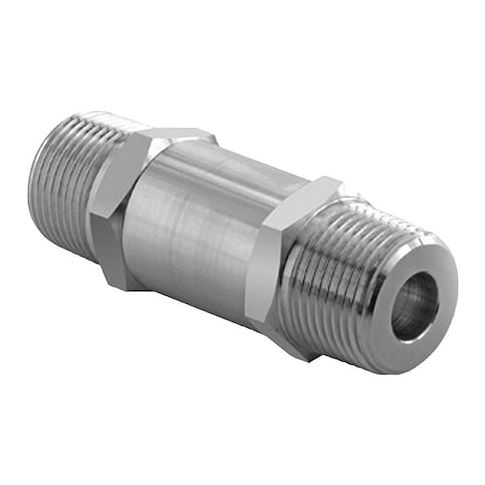

Instrumentation Check Valve, H400 Series, Inline Spring, 1/8 in MNPT x MNPT, SS Body MPN:H-480-SS-N-1/8-1/3PSI
Free Shipping
In Stock
The Instrumentation Check Valve from Ham-Let is a reliable and efficient solution for various industrial applications. This check valve is designed to prevent backflow and ensure smooth fluid movement in piping systems, making it ideal for use in chemical processing, power generation, and oil and gas industries. Its compact size and lightweight design make it easy to integrate into existing systems, while its high-quality construction ensures durability and long-lasting performance. With a fast lead time and minimal order quantity, it's easy to get the right valve when you need it, making it a convenient choice for industries that require quick turnaround.
Top product features:
- Check Valve functionality for instrumentation
- Blind Ship Eligible: No
- LTL Freight Required: No
Top product applications:
- High-Pressure Piping Systems
- Steam Traps
- Heat Exchangers
HAM-LET H-480-SS-N-1/8-1/3PSI is an instrumentation check valve for one-way flow in small-bore instrument and process control lines. This 2-way inline spring valve uses a poppet check mechanism for one-way flow in small-bore instrument and process control lines. Listed media: chemicals, gas, oil, and water.
Key Features:
- 316 stainless steel body, check mechanism, and seat
- 302 stainless steel spring with FKM seal material
- 1/8 in. MNPT x MNPT connections with male NPT ends on both sides
- Nominal valve size: 1/8 in.
- pipe or tube size: 1/8 in.
- Cracking pressure: 0.33 psi
- Cv: 0.1
- Maximum operating pressure: 3,000 psi
- Operating temperature range: -10°F to 375°F
- Mounting orientation: horizontal or vertical
- Overall length: 1.74 in.
- hex size: 5/8 in.
- Valve body style: inline
- valve series: H400
- Standard: C.R.N 0C16552.2
Additional Information
- Country of Origin: IL
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.10
- Package Height: 1.00
- Package Weight: 0.09
