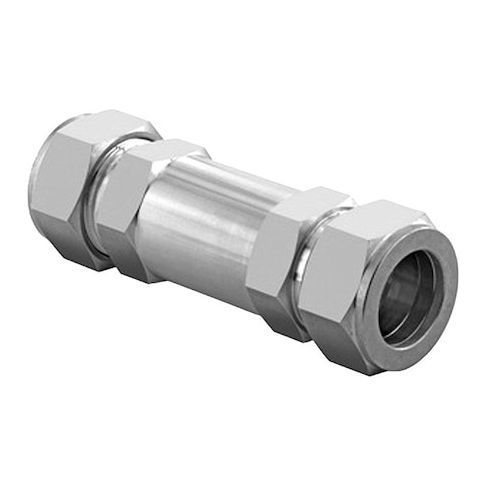

Instrumentation Check Valve, H400 Series, Inline Spring, Let-Lok x Let-Lok, 6 mm, 316 SS, 25 psi MPN:H-400-SS-L-6MM-25PSI

HAM-LET H-400-SS-L-6MM-25PSI is an instrumentation check valve for one-way flow control in small-bore tubing systems. This inline spring valve uses a poppet check mechanism with a fixed 25 psi cracking pressure to reduce reverse flow in lines carrying compatible chemicals, gas, oil, or water. It features 6 mm Let-Lok connections on both ends and a 316 stainless steel body for general-purpose instrumentation service.

Key Features:

• Instrumentation check valve with inline spring design.
• 6 mm Let-Lok connections on both ends.
• 316 stainless steel body, check mechanism, and seat.
• 302 stainless steel spring and FKM seal.
• Fixed 25 psi cracking pressure.
• Cv 0.47 flow capacity.
• Maximum operating pressure: 3,000 psi.
• Maximum water pressure: 3,000 psi at -10°F to 100°F.
• Operating temperature range: -10°F to 375°F.
• Horizontal or vertical mounting orientation.
• Inline body style with 2.38 in overall length and 5/8 in hex size.
• C.R.N. 0C16552.2.
