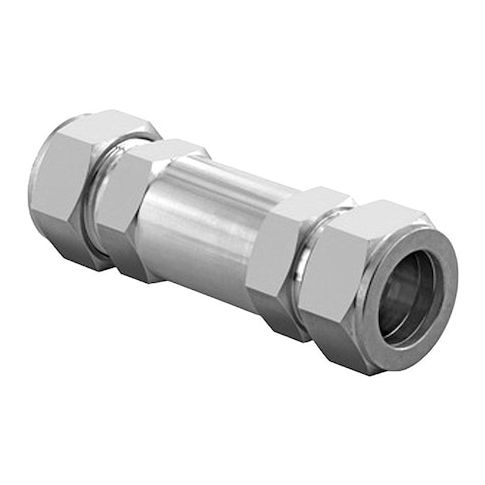

Instrumentation Check Valve, H400 Series, Inline Spring, 1/2 in Let-Lok x Let-Lok, SS MPN:H-400-SS-L-1/2-1/3PSI
Free Shipping
In Stock
The Ham-Let Instrumentation Check Valve is a high-quality, stainless steel check valve designed for use in various industrial applications. Its compact size and lightweight design make it ideal for use in tight spaces, while its durable construction ensures reliable performance in demanding environments. This valve is perfect for use in process control systems, laboratory equipment, and other applications where precise flow control is critical. Its fast shipping lead time and low minimum order quantity make it an attractive option for businesses and industries requiring quick turnaround and flexibility.
Top product features:
- Check Valve functionality
- One-way flow control
- Stainless Steel construction
Top product applications:
- Sanitary Process Valve
- High-Pressure Gas Application
- Steam Tracing System
HAM-LET H-400-SS-L-1/2-1/3PSI is an instrumentation check valve designed for one-way flow control in small-bore tubing lines. It uses an inline spring and poppet mechanism to help prevent reverse flow in compatible chemical, gas, oil, and water instrumentation lines. This 1/2 in valve features Let-Lok connections on both ends, a maximum operating pressure of 3,000 psi, and a cracking pressure of 0.33 psi.
Key Features:
- Instrumentation check valve with 2-way inline body design
- 1/2 in Let-Lok x Let-Lok connections
- 316 stainless steel body, seat, and check mechanism
- 302 stainless steel spring and FKM seal
- Poppet check mechanism
- Cv flow coefficient: 1.68
- Maximum operating pressure: 3,000 psi
- Maximum water pressure: 3,000 psi at -10 degrees F to 100 degrees F
- Temperature range: -10 degrees F to 375 degrees F
- Horizontal or vertical mounting orientation
- Nominal valve size: 1/2 in
- Overall length: 3.03 in
- Hex size: 15/16 in
- C.R.N. 0C16552.2
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 1.30
- Package Height: 1.20
- Package Weight: 0.39
