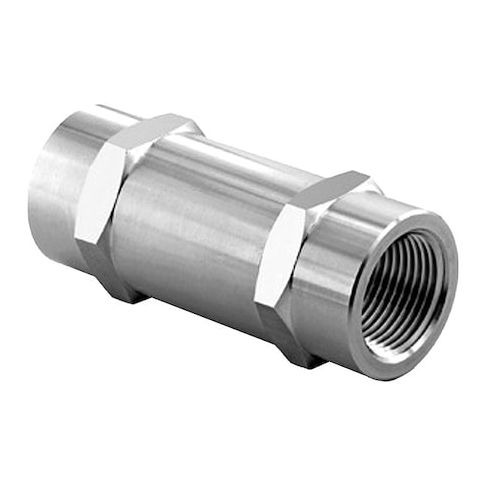

Instrumentation Check Valve, H400 Series, 3/8 in FNPT x FNPT, Inline Spring, 316 SS, 0.33 psi MPN:H-410-SS-N-3/8-1/3PSI
Free Shipping
In Stock
The Instrumentation Check Valve from Ham-Let is a reliable and precise solution for various industrial applications. Designed to allow fluid to flow in one direction while preventing backflow, this check valve ensures smooth operation and prevents damage to equipment. Its compact size and lightweight design make it ideal for use in tight spaces and remote locations. Suitable for use in industries such as oil and gas, chemical processing, and power generation, this check valve provides consistent performance and helps to prevent costly downtime and maintenance. Its durability and reliability make it a valuable asset for any industrial operation.
Top product features:
- Check Valve functionality allows for one-way flow of fluid or gas.
- The valve prevents backflow and ensures pressure relief.
- The instrumentation check valve is designed for use in high-pressure applications.
Top product applications:
- Pneumatic system pressure regulation
- Process control in chemical plants
- Industrial piping systems for high-pressure fluids
HAM-LET H-410-SS-N-3/8-1/3PSI is an instrumentation check valve for one-way flow control in small-bore liquid and gas lines. This 2-way inline valve uses a poppet check mechanism for reverse-flow restriction in liquid and gas lines compatible with 316 stainless steel and FKM components. It features 3/8 in FNPT x FNPT connections and is rated for horizontal or vertical mounting.
Key Features:
- Body Material: 316 stainless steel
- Check Mechanism: Poppet design, 316 stainless steel
- Connection Type: FNPT x FNPT
- Connection Size: 3/8 in x 3/8 in
- Connection Gender: Female x Female
- Valve Body Style: Inline spring, inline body design
- Cracking Pressure: 0.33 psi
- Coefficient of Volume (Cv): 1.47
- Maximum Operating Pressure: 3,000 psi
- Temperature Range: -10 Degrees F to 375 Degrees F
- Seal Material: FKM
- Seat Material: 316 stainless steel
- Spring Material: 302 stainless steel
- Hex Size: 7/8 in
- Overall Length: 2.03 in
- Standards: C.R.N 0C16552.2
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.23
