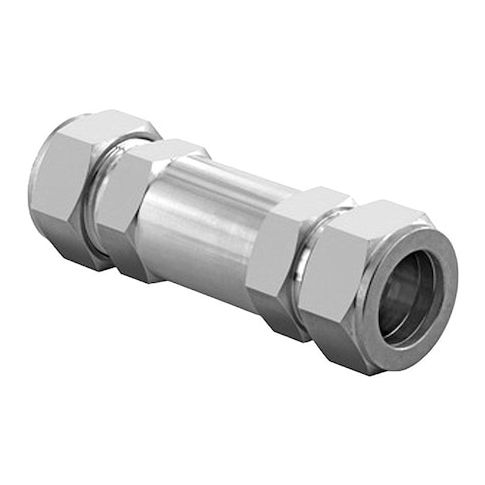

Instrumentation Check Valve, H400 Series, Inline Spring, Let-Lok x Let-Lok, 10 mm, 3 psi MPN:H-400-SS-L-10MM-3PSI
Free Shipping
In Stock
The Instrumentation Check Valve from Ham-Let is a reliable and versatile solution for a wide range of applications. Designed with an inline spring mechanism and stainless steel body, this valve provides a fixed cracking pressure and is suitable for general-purpose use. Its compact size and lightweight design make it ideal for use in tight spaces and high-pressure systems. The valve's fluorocarbon FKM seal ensures a tight seal and resistance to corrosion, while its operating temperature range of -10 to 375°F makes it suitable for use in a variety of environments. Perfect for use in industrial, chemical, and pharmaceutical applications.
Top product features:
- Inline spring mechanism allows for fixed cracking pressure
- Stainless steel body provides resistance to corrosion
- Fluorocarbon FKM seal material offers high temperature resistance up to 375 Degrees F
Top product applications:
- Fixed Cracking Pressure
- General Purpose
- Instrumentation
HAM-LET H-400-SS-L-10MM-3PSI is an instrumentation check valve for small-bore tubing systems. This inline spring valve permits forward flow and is intended to restrict reverse flow in general-purpose service with a fixed 3 psi cracking pressure. It is for use with compatible chemicals, gas, oil, and water within the specified ratings. Mounting orientation: horizontal or vertical.
Key Features:
- Instrumentation check valve with inline spring and poppet-style check mechanism
- Body material: 316 stainless steel
- Seat material: 316 stainless steel
- Check mechanism material: 316 stainless steel
- Spring material: 302 stainless steel
- Seal material: FKM
- Connection type: Let-Lok x Let-Lok
- Connection size: 10 mm on both sides
- Nominal valve size / tube size: 10 mm
- Cracking pressure: 3 psi
- Flow coefficient (Cv): 1.68
- Maximum operating pressure: 3,000 psi
- Maximum water pressure: 3,000 psi at -10°F to 100°F
- Operating temperature range: -10°F to 375°F
- Body style: Inline, 2-way
- Mounting orientation: Horizontal, Vertical
- Hex size: 11/16 in.
- Overall length: 2.52 in.
- Standards: C.R.N 0C16552.2
Additional Information
- Country of Origin: IL
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.03
- Package Width: 1.22
- Package Height: 1.22
- Package Weight: 0.24
