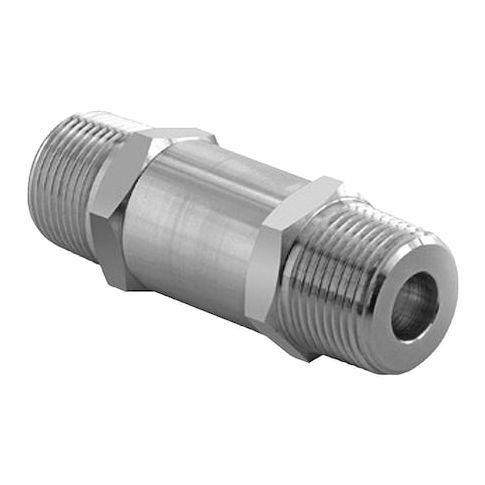

Instrumentation Check Valve, H400 Series, Inline Spring, 1/4 in MNPT x MNPT, 316 SS MPN:H-480-SS-N-1/4-1/3PSI

HAM-LET H-480-SS-N-1/4-1/3PSI is an instrumentation check valve intended for one-way flow applications in compatible small-bore instrument and process control lines. This 2-way inline spring valve uses a poppet check mechanism to restrict reverse flow in compatible systems handling media such as chemicals, gas, oil, and water. It features a 316 stainless steel body, seat, and check mechanism, with 1/4 in male NPT connections on both ends.

Key Features:

• Valve type: Instrumentation check valve with inline body design
• Connection type: 1/4 in MNPT x MNPT
• Body material: 316 stainless steel
• Check mechanism: Poppet with 316 stainless steel check mechanism and 302 stainless steel spring
• Seal material: FKM
• Cracking pressure: 0.33 psi
• Flow capacity: Cv 0.47
• Maximum operating pressure: 3,000 psi
• Operating temperature range: -10°F to 375°F
• Mounting orientation: Horizontal or vertical
• Overall length: 2.2 in
• Hex size: 3/4 in
• Standards: C.R.N. 0C16552.2
