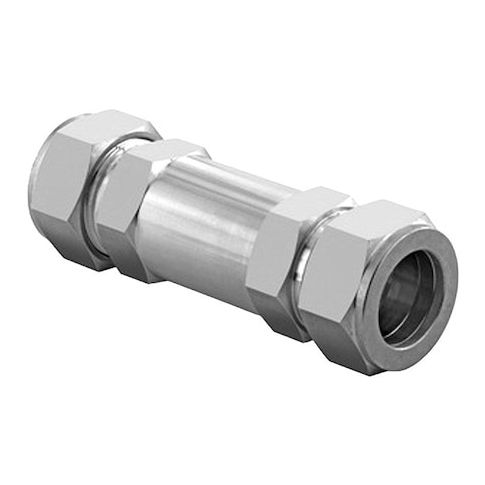

Instrumentation Check Valve, H400 Series, Inline Spring, Let-Lok x Let-Lok, 1/4 in, 316 SS, 5 psi MPN:H-400-SS-L-1/4-5PSI
Free Shipping
In Stock
The Instrumentation Check Valve from Ham-Let is a reliable and precise solution for various applications. Designed for use in high-pressure systems, this stainless steel check valve ensures smooth flow and prevents backflow, minimizing the risk of damage and contamination. Its compact size and lightweight design make it ideal for use in tight spaces and remote locations. Suitable for industries such as oil and gas, chemical processing, and power generation, this valve provides consistent performance and long-lasting durability. With its ease of installation and maintenance, it is an excellent choice for applications requiring precise control and reliability.
Top product features:
- SS Check Valve provides a one-way flow of fluid to prevent backflow.
- The valve is designed to be blind ship ineligible.
- The product ships in one day.
Top product applications:
- Pressure Transmitter Diaphragm Protection
- High-Purity Gas Systems
- Steam Traps
HAM-LET H-400-SS-L-1/4-5PSI is an instrumentation check valve intended for one-way flow applications in small-bore tubing lines. This inline, 2-way valve uses a poppet check mechanism for reverse-flow checking in systems using compatible chemicals, gas, oil, or water. It features Let-Lok x Let-Lok 1/4 in connections, a 5 psi cracking pressure, and a 2.38 in overall length for instrumentation and process control applications.
Key Features:
- Body material: 316 stainless steel.
- Check mechanism: Poppet design with a 316 stainless steel mechanism and 302 stainless steel spring.
- Connections: 1/4 in side 1 and side 2, Let-Lok x Let-Lok.
- Flow capacity: Cv 0.47.
- Pressure rating: 3,000 psi maximum operating pressure
- 3,000 psi maximum water pressure at -10 Degrees F to 100 Degrees F.
- Temperature range: -10 Degrees F to 375 Degrees F.
- Seal and seat materials: FKM seal and 316 stainless steel seat.
- Body style and mounting: Inline spring design with inline body for horizontal or vertical mounting.
- Hex size: 5/8 in.
- Standards: C.R.N 0C16552.2.
Additional Information
- Country of Origin: IL
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.14
