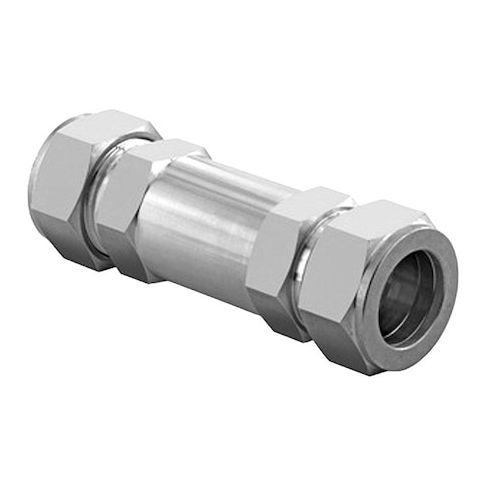

Instrumentation Check Valve, H400 Series, Inline Spring, Let-Lok x Let-Lok, 10 mm, 316 SS MPN:H-400-SS-L-10MM-1/3PSI

• HAM-LET H-400-SS-L-10MM-1/3PSI is an instrumentation check valve for one-direction flow applications in small-bore tubing systems. This inline spring valve uses a poppet check mechanism with a fixed cracking pressure of 0.33 psi to restrict reverse flow in general-purpose service with compatible chemicals, gas, oil, and water. The valve has 10 mm Let-Lok x Let-Lok connections and a 316 stainless steel body, seat, and check mechanism.

  Key Features:

  • Valve type: Instrumentation check valve with inline spring design and 2-way flow path
  • Connection size and type: 10 mm Let-Lok x Let-Lok
  • Body material: 316 stainless steel
  • Check mechanism: Poppet with 316 stainless steel check mechanism and 302 stainless steel spring
  • Cracking pressure: 0.33 psi
  • Flow capacity: Cv 1.68
  • Pressure rating: 3,000 psi maximum operating pressure
  • 3,000 psi water pressure rating at -10 Degrees F to 100 Degrees F
  • Temperature range: -10 Degrees F to 375 Degrees F
  • Seal material: FKM
  • Mounting orientation: Horizontal or vertical
  • Overall length: 2.52 in
  • hex size: 11/16 in
  • Standard: C.R.N 0C16552.2
