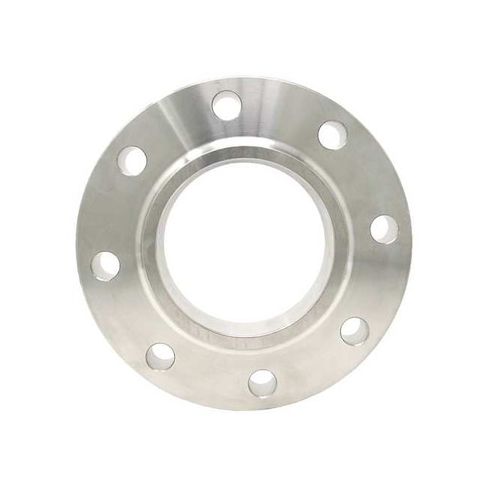

Flange, Stainless Steel, Slip-On, 16 in MPN:FLS61RFSO1000
Free Shipping
In Stock
The GUARDIANMADE FLS61RFSO1000 slip-on flange is a reliable and durable solution for joining pipes, valves, pumps, and equipment in various industrial settings. Made from corrosion-resistant 316L stainless steel, this flange is suitable for use in air, natural gas, oil, and potable water systems. With a raised face connection surface and a Class 150 pressure rating, it ensures a pressure-tight gasket seal. Its versatility and durability make it an ideal choice for applications in chemical processing, power generation, and oil and gas industries, where reliable and safe connections are crucial.
Top product features:
- Slip-On flange type allowing the flange to slip over the pipe end and be secured by welds.
- 316L stainless steel material grade for corrosion resistance.
- Raised face connection surface for pressure-tight gasket sealing.
Top product applications:
- Joining pipes
- Valves
- Pumps
The GUARDIANMADE - FLS61RFSO1000 is a 10-inch nominal pipe size slip-on flange made from 316L stainless steel, manufactured to meet the specifications of ASME B16.5 and ASTM A182 standards. It is designed as a pipe flange for joining pipes, valves, pumps, and equipment in accordance with applicable standards. This flange features a raised face connection surface and is compatible with air, natural gas, oil, and potable water systems within specified conditions. It is rated for operation within a maximum pressure of 230 psi under specified conditions.
Key Features:
- - Slip-On flange type allowing the flange to slip over the pipe end and be secured by welds.
- - 316L stainless steel material grade for corrosion resistance.
- - Raised face connection surface for pressure-tight gasket sealing.
- - Class 150 pressure rating.
- - 12 bolt holes with a 14 1/4 in bolt circle diameter and 1 in bolt hole diameter, supporting standard bolting patterns within specified dimensions.
- - Flange outside diameter of 16 in and flange thickness of 1 1/4 in.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 16.40
- Package Height: 3.40
- Package Weight: 39.58
