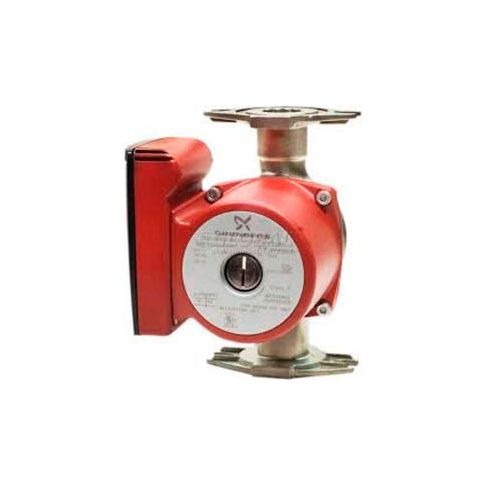

Grundfos UP15-29SF Circulator Water Pump 59896771 Stainless Steel 115V 1/12 HP 59896771

Discount: See in Cart
Free Shipping
In Stock
Brand: Grundfos
Part #: 59896771
UPC: 05700837414418
SKU
281-12628B10
$528.49
Add to Wish List Add to Compare
Grundfos UP15-29SF Circulator Water Pump 59896771 Stainless Steel 115V 1/12 HP 59896771

This item is NOT returnable.

Grundfos UP15-29SF Circulator Water Pump 59896771, Stainless Steel, 115V, 1/12 HP

Choosing a stainless steel circulator ensures that you will always have the right pump - whether it is an open or closed system. Grundfos offers three stainless steel models, including two that feature our 3-speed Super Brute technology.

Features:

  • Perfect for hot water recirculation applications
  • Stainless steel - Protects against corrosive fluids
  • Available in standard union or two-bolt flange
  • 3-speed Super Brute technology available
  • Timer and line-cord options available
  • Integrated, removable check valve
  • Quick connect terminals - for easy installation
  • Highest starting torque in its class
  • Industry leading three-year warranty
  • Made in the USA.


Product Specifications

  • BRANDGrundfos
  • LENGTH INCHES4-1/8
  • WIDTH INCHES5-1/2
  • HEIGHT INCHES6-1/2
  • WEIGHT LBS6.02
  • COLORRed
  • HOUSING MATERIALStainless Steel
  • IMPELLER MATERIALComposite, PES
  • PRESSURE PSI145
  • VOLTAGE0.75
  • MAXIMUM AMBIENT TEMPERATURE °F104 °F
  • HERTZ60
  • HORSEPOWER1/12
  • CONNECTION TYPES.S. Flange
  • APPROVALS OR CERTIFICATIONSUL, CSA
  • LIMITED WARRANTY YEARS1
  • MANUFACTURER'S PART NUMBER59896771
  • MODELUP15-29SF
  • FLANGE STANDARDUSA Oval
  • AMBIENT MAX AT 176°F LIQUID176 °F
  • PORT TO PORT LENGTH INCHES6-1/2
  • PIPE CONNECTION2 Bolt Flange
  • NUMBER OF POLES2
  • CAPACITOR SIZE - RUN10 μF/180 V
  • MAX. POWER INPUT87 W
  • HEAD FEET0-9.84
  • SYSTEM TYPEClosed
  • THERMAL PROTECTIONInternal
  • MOTOR PROTECTIONContact
  • POS TERM BOX9H
  • FLOW U.S. GPM0-20.7
  • MAX. AMPS0.75
  • MAX. WATTS87
  • NUMBER OF SPEEDS1
  • MAXIMUM FLUID TEMPERATURE °F230°F
  • MINIMUM FLUID TEMPERATURE °F35.6°


Additional Information
  • UPC: 05700837414418
  • UNSPSC: 40101602
  • Brand: Grundfos
  • Color: Red
  • Package Quantity: 1
  • Country of Origin: US
  • FOB Origin: NY
  • Ships by: PARCEL
  • Comes in a kit: No
  • Newly added to catalog: No
  • Item is on Clearance: No
  • Contains Hazardous Materials: No
  • CA Proposition 65 Applies: No
  • Package Length: 10.00
  • Package Width: 8.00
  • Package Height: 6.00
  • Package Weight: 6.02
