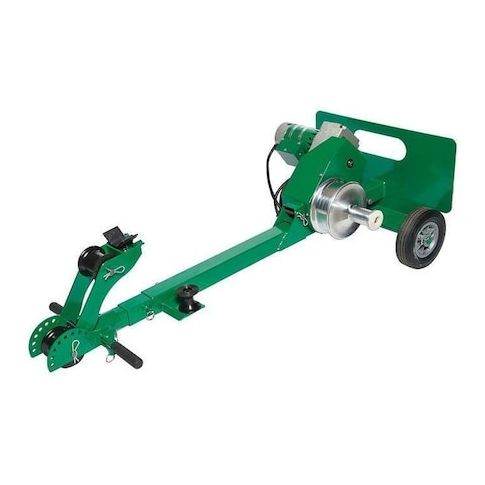

G3 TUGGER Cable Puller, 2, 000 lb., 120V, 12A MPN:G3
Free Shipping
In Stock
The Greenlee G3 TUGGER cable puller is a versatile and efficient tool designed for one-person use on the job site. With its integrated motor, capstan, and conduit clamp, it eliminates the need for loose components or complex setups, saving time and increasing productivity. Ideal for cable pulling in capacities ranging from 4 AWG to 1000 kcmil, this corded tool features high-speed retrieval and a dual-speed design for adapting to varying resistances. Suitable for a range of applications, including electrical, telecommunications, and industrial installations, the G3 TUGGER cable puller provides a reliable and user-friendly solution for professionals in various trades.
Top product features:
- The G3 TUGGER cable puller features a 1 HP electric motor to deliver high-speed cable retrieval without sacrificing pulling power.
- The tool has a dual-speed design to adapt to the resistance of the pull, allowing for efficient operation in various conditions.
- The G3 TUGGER has a built-in handle and two 8-inch solid wheels for one-person transport and setup, providing increased mobility and ease of use on the job site.
Top product applications:
- Cable pulling for electrical distribution and telecommunications infrastructure
- Cable pulling for industrial and commercial construction projects
- Cable pulling for utility and municipal infrastructure installations
The Greenlee G3 TUGGER cable puller is an electric, self-contained wire puller system designed for efficiency and mobility on the job site. This corded tool features an integrated motor, capstan, and conduit clamp, eliminating the need for loose components or complex setups. It is specifically engineered to handle cable pulling for capacities ranging from 4 AWG to 1000 kcmil using a 1/2-inch double-braided composite rope.
Performance and Speed:
- - The G3 cable puller utilizes a 1 HP electric motor to deliver high-speed cable retrieval without sacrificing pulling power. It features a dual-speed design to adapt to the resistance of the pull:
- - No-Load Speed: 97 feet per minute (fpm).
- - High-Load Speed: Minimum of 36 fpm when operating at maximum pulling force.
- - Pulling Force: Rated for a 1,200 lbf maximum continuous pull and a 2,000 lbf maximum momentary pull.
Mobility and Design:
- - Designed for one-person transport and setup, the G3 TUGGER cable puller includes a built-in handle and two 8-inch solid wheels. The base is engineered to attach directly to various conduit sizes, providing a stable anchor point for vertical or horizontal pulls.
- - Boom Length: 6 feet for extended reach and proper alignment.
- - Overall Dimensions: 54" Height x 23.4" Width x 16.8" Length.
- - Tool Weight: 123 lb.
Electrical and Safety Features:
- - Motor: 115V AC, 12 Amp motor (compatible with 50/60 Hz).
- - Safety: The system is designed with no loose parts to lose or drop, and the 90-degree right-angle sheave keeps the operator out of the direct line of the pulling rope
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 46.50
- Package Width: 17.20
- Package Height: 11.00
- Package Weight: 144.00
