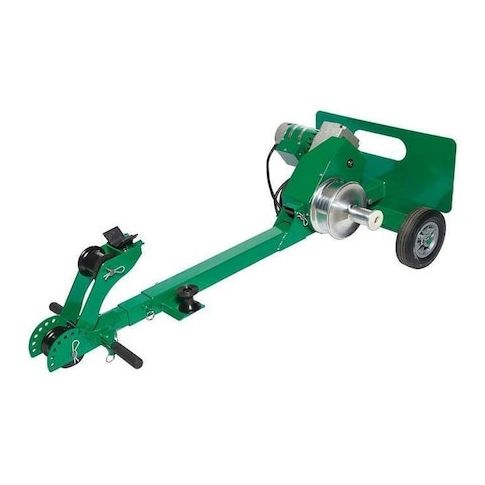

G3 - Tugger (G3) (Pkgd) MPN:G3

The Greenlee G3 TUGGER cable puller is an electric, self-contained wire puller system designed for efficiency and mobility on the job site. This corded tool features an integrated motor, capstan, and conduit clamp, eliminating the need for loose components or complex setups. It is specifically engineered to handle cable pulling for capacities ranging from 4 AWG to 1000 kcmil using a 1/2-inch double-braided composite rope.

Performance and Speed:

• - The G3 cable puller utilizes a 1 HP electric motor to deliver high-speed cable retrieval without sacrificing pulling power. It features a dual-speed design to adapt to the resistance of the pull:
  • - No-Load Speed: 97 feet per minute (fpm).
  • - High-Load Speed: Minimum of 36 fpm when operating at maximum pulling force.
  • - Pulling Force: Rated for a 1,200 lbf maximum continuous pull and a 2,000 lbf maximum momentary pull.

    Mobility and Design:

    • - Designed for one-person transport and setup, the G3 TUGGER cable puller includes a built-in handle and two 8-inch solid wheels. The base is engineered to attach directly to various conduit sizes, providing a stable anchor point for vertical or horizontal pulls.
    • - Boom Length: 6 feet for extended reach and proper alignment.
    • - Overall Dimensions: 54" Height x 23.4" Width x 16.8" Length.
    • - Tool Weight: 123 lb.

      Electrical and Safety Features:

      • - Motor: 115V AC, 12 Amp motor (compatible with 50/60 Hz).
      • - Safety: The system is designed with no loose parts to lose or drop, and the 90-degree right-angle sheave keeps the operator out of the direct line of the pulling rope



      Additional Information

      • Country of Origin: US
      • Drop Ship Item: No
      • Blind Ship Eligible: No
      • LTL Freight Required: No
      • Lead Time: Ships in 1 days
      • Minimum Order Quantity: 1
      • Unit of Measure: EA
      • Package Length: 46.50
      • Package Width: 17.20
      • Package Height: 11.00
      • Package Weight: 144.00



      Additional Information

      • UPC Code: 783310009054
      • Country of Origin: UNITED STATES
      • Hazmat Item: Yes
      • Special Order Item: Yes
      • State Restricted: YES
      • Minimum Order Quantity: 1
      • Minimum Order UOM: EA
      • Cost UOM: EA
      • UOM Conversion: 1 EA = 1 EA
      • Item Weight: 131
      • Item Length: 11
      • Item Width: 46
      • Item Height: 16.5
      • Item Cube: 8349
