555C - Bender Elect Cond(555 Classic) MPN:555C

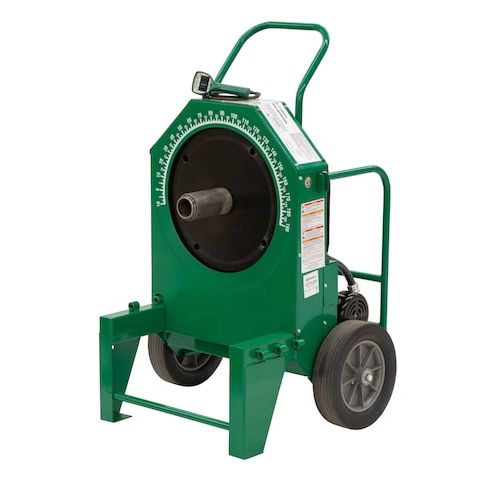

The Greenlee 555C Electric Bender Classic is an industrial power tool intended for bending 1/2" to 2" conduit and pipe. Constructed with a heavy-duty steel frame and weighing approximately 260 lbs without attachments, it is designed for both vertical and horizontal bending operations. The unit is powered by a 120 VAC, 20 amp universal motor and utilizes a twist-lock plug for secure power connection.

Performance and Capability:

• - Conduit Capacity: Bends 1/2" to 2" Electrical Metallic Tubing (EMT), Intermediate Metallic Conduit (IMC), Rigid Conduit, PVC-Coated Rigid Conduit, and Schedule 40 Pipe .
• - Mechanical Drive: Features a gear box filled with 26 fluid ounces of oil and a #60 HT final drive chain for high-torque output.
• - Control System: Operated via a hand-held pendant switch that allows for both BEND and UNLOAD (reverse) functions.

  Construction and Portability:

  • - Mobile Frame: Built on an axle with two wheels and a removable upper handle for transport and storage.
  • - Structural Dimensions: Measures 44" in height, 28.5" in width, and 20.5" in depth .
  • - Environmental Rating: Rated for operation in temperatures ranging from -5 °F to 120 °F (-20 °C to 49 °C).
  • - Precision Bending: Equipped with a front-mounted protractor and adjustable arrow indicators to ensure accurate bend angles.



  Additional Information

  • Country of Origin: US
  • Drop Ship Item: No
  • Blind Ship Eligible: No
  • LTL Freight Required: No
  • Lead Time: Ships in 1 days
  • Minimum Order Quantity: 1
  • Unit of Measure: EA
  • Package Length: 52.00
  • Package Width: 43.00
  • Package Height: 47.00
  • Package Weight: 304.00



  Additional Information

  • UPC Code: 783310069003
  • Country of Origin: UNITED STATES
  • Hazmat Item: No
  • Special Order Item: Yes
  • State Restricted: NO
  • Minimum Order Quantity: 1
  • Minimum Order UOM: EA
  • Cost UOM: EA
  • UOM Conversion: 1 EA = 1 EA
  • Item Weight: 304
  • Item Length: 36
  • Item Width: 32
  • Item Height: 44
  • Item Cube: 50688
