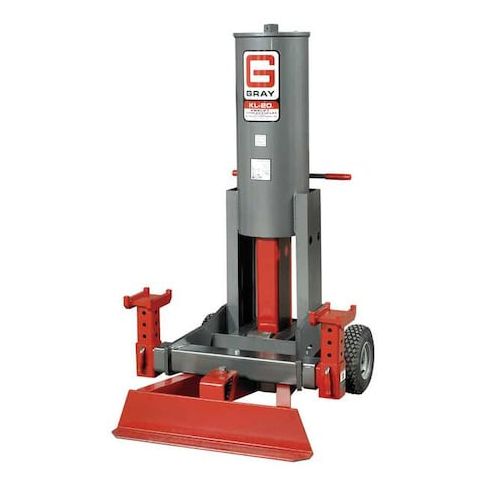

KL-20 Air-Operated End Lift, 2000 lbs / 10 Ton Load Capacity, 50" Max Lifting Height MPN:KL-20

The KL-20 Air Operated End Lift is a heavy-duty vehicle lift designed for trucks with a maximum capacity of 20,000 lbs (10 tons). Built with a rugged steel frame and a stable 42" x 37" base, it offers durability and reliable performance for truck maintenance and repair tasks. Operating via an air-powered mechanism with a manual handle actuator, it provides smooth, controlled lifting between 14" and 50" heights. The lift features adjustable saddles and 5-inch pneumatic wheels for easy mobility. Engineered to meet ANSI/ASME PALD standards, the unit supports up to 200 psi operating pressure and is made in the USA.

Key Features:

• - Maximum lifting capacity: 20,000 lbs (10 tons)
• - Robust steel frame with 42" x 37" stable base
• - Adjustable lifting saddles for versatility
• - Large 5-inch pneumatic wheels for smooth maneuvering
• - Air-operated with manual handle actuator for controlled lifting
• - Lifting height range: 14" to 50"
• - 22-inch steel handle for comfortable handling
• - Complies with ANSI/ASME PALD safety standards
• - Maximum operating pressure: 200 psi
• - Compact dimensions: 65" height x 37" width
• - Made in the USA
