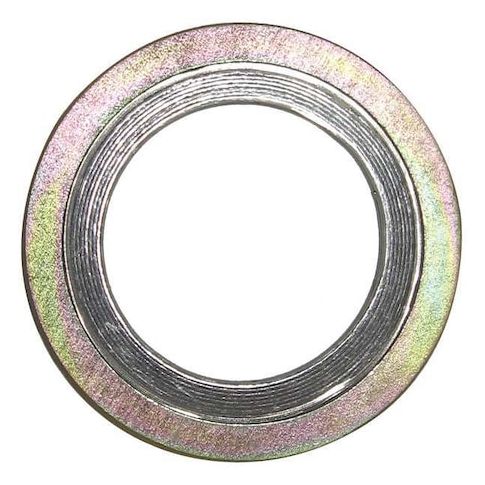

Spiral Wound Metal Gasket, 3 in., 11/64 in MPN:304-150-0300
Spiral Wound Metal Gasket, 3 in., 11/64 in
Protect your industrial equipment with the durable Spiral Wound Metal Gasket from GoVets Select. Designed for use in ANSI Class 150 flanges, this gasket provides a tight seal for pipes up to 3 inches in size. Made with a graphite filler and stainless steel spiral winding, it withstands extreme temperatures from -320°F to 842°F. Its gray and yellow color-coded design ensures easy identification and installation. Ideal for use in chemical processing, oil and gas, and power generation applications, this gasket offers reliable performance and long-lasting durability in demanding environments.
Top product features:
- Spiral winding material is made of stainless steel for corrosion resistance and durability.
- The gasket has a graphite filler material for sealing and insulation properties.
- The product can operate at temperatures ranging from -320 to 842 degrees Fahrenheit, making it suitable for high-temperature applications.
Top product applications:
- Pump and valve applications where high temperature and pressure are involved
- High-temperature pipe connections in chemical processing plants
- Steam boiler applications requiring a durable and resistant gasket
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 3 in, Inside Diameter 4 in, Outside Diameter 5 3/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None, Inner Ring Stainless Steel Grade Not Applicable
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 5.30
- Package Height: 0.20
- Package Weight: 0.31
Product info last updated on March 27, 2026 7:12pm UTC
Category: Sealing and Gasketing
