Spiral Wound Metal Gasket, 3/4 in., 11/64 MPN:304-346-0075

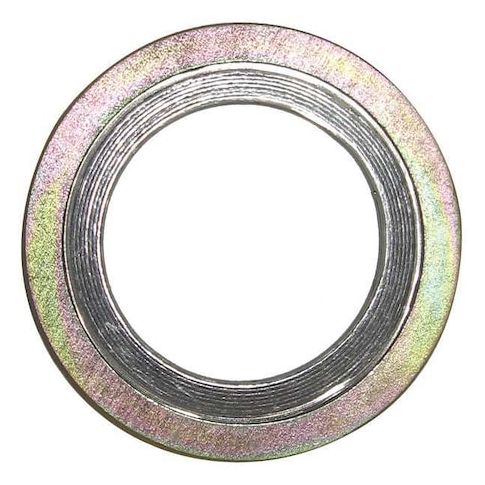

Spiral Wound Metal Gasket, 3/4 in., 11/64
This Spiral Wound Metal Gasket is designed for use with ANSI Class 300, 400, and 600 flanges on 3/4 inch pipes, providing a secure and leak-resistant seal. The gasket's graphite filler material and stainless steel spiral winding ensure durability and resistance to high temperatures, ranging from -320 to 842 degrees Fahrenheit. Its compact size and lightweight design make it suitable for a variety of applications, including industrial, chemical, and oil and gas processing. The gasket's gray and yellow color coding also indicates its intended use, making it a reliable choice for professionals seeking a high-quality sealing solution.
Top product features:
- Spiral winding material is Stainless Steel Grade 304, providing resistance to corrosion and durability.
- The gasket has a maximum operating temperature of 842 Degrees F, allowing for high-temperature applications.
- The gasket has a minimum operating temperature of -320 Degrees F, enabling use in low-temperature environments.
Top product applications:
- High-Pressure Pump Applications
- Steam Turbine Applications
- Chemical Processing Plant Gasket Replacement
Spiral Wound Flange Gasket, For Flange ANSI Class 300, 400, 600, For Pipe Size 3/4 in, Inside Diameter 1 in, Outside Diameter 2 5/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 0.20
- Package Weight: 0.17
Product info last updated on February 26, 2026 12:08am UTC
Category: Sealing and Gasketing
